Home Elevator

XYZLIFT- The lifts are suitable for both residential and commercial projects, as well as indoor and outdoor use, in pit or without pit installation, suit every requirement and application

Home Elevator

XYZLIFT- The lifts are suitable for both residential and commercial projects, as well as indoor and outdoor use, in pit or without pit installation, suit every requirement and application

Home Elevator

XYZLIFT-Leading Manufacturer of Safe Home Elevators


Home Elevator  Key Featurers:

  • Standard:EN81-41
  • Load capacity 400kg
  • Max stop: 5 stops
  • Travel speed: Standard 0.2m/s, adjustable
  • Landing door:Manual/Automatic Swing door, Automatic middle open door
  • Car door: Light curtain or fold door
  • Pit: with or without pit
  • Shaft: with or without shaft

Home Elevator Types

Explore a Variety of Home Lift Styles for Every Home Design

Home Elevator Platform

Home Elevator With Car

Home Lift Platform With Shaft

Home Lift with Car and shaft

Best-selling Home Elevators

Discover Top Home Lift Models That Combine Luxury, Safety, and Efficiency

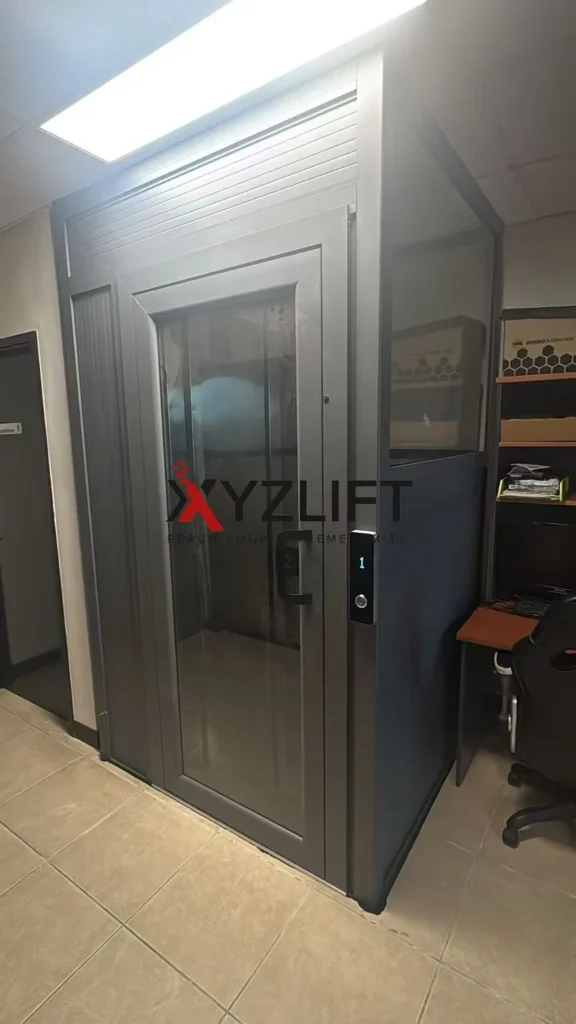

Home Elevator with shaft

  • Load capacity 400kg
  • Car size 900*1000*2100mm
  • Three stop
  • Travel height 10.1m
  • Car wall are glass
  • Without car door
  • With shaft and glass
  • Shaft color porcelain gold
  • Glass grey color
  • Shaft material 75# aluminum
  • Single opeing
  • Landing door: Swing door
  • Door opening size 900*2100mm
  • Installation size 1100*1450mm

A home lift is suitable for installation in a lobby or near stairs. The shaft color is optional to match your house style.

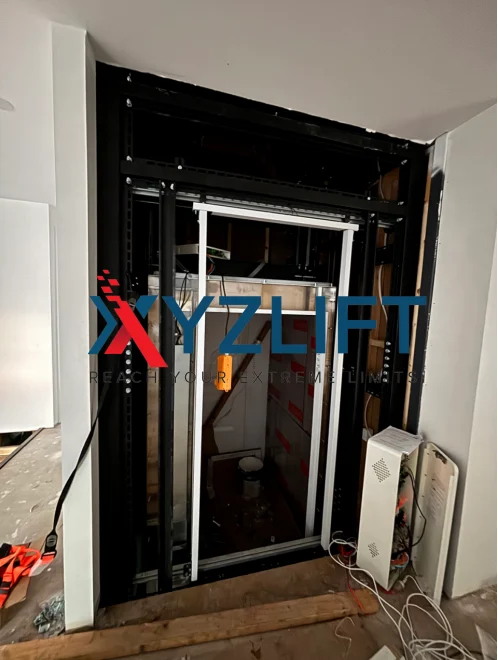

Home elevator in concrete shaft

  • Load capacity 400kg
  • Car size 1000*1000mm
  • 2 stop
  • Travel height 7100mm
  • Car wall are original 304 stainless steel
  • With out car door
  • No shaft, home lift in concrete shaft
  • With Swing landing door
  • Door opening size 900mm*2100mm
  • Concrete shaft size: 1380*1200mm

The installation site already has an existing concrete shaft where the XYZLIFT home elevator will be installed. Landing doors will also be installed, and their color is optional, allowing customization to match the house style

Home Elevator without shaft installed limited space.

  • Load capacity 250kg
  • Car size 900*1000mm
  • 3 stop
  • Travel height 9800mm
  • Car wall Aluminium frame with glass
  • No shaft, home lift fixed in ground.
  • Car with fold door
  • Door opening size 900mm*2100mm
  • Instllation site size 1280*1100mm

Given the limited space at the home lift installation site, we will install the lift without a shaft, enabling us to increase the size of the elevator cabin.

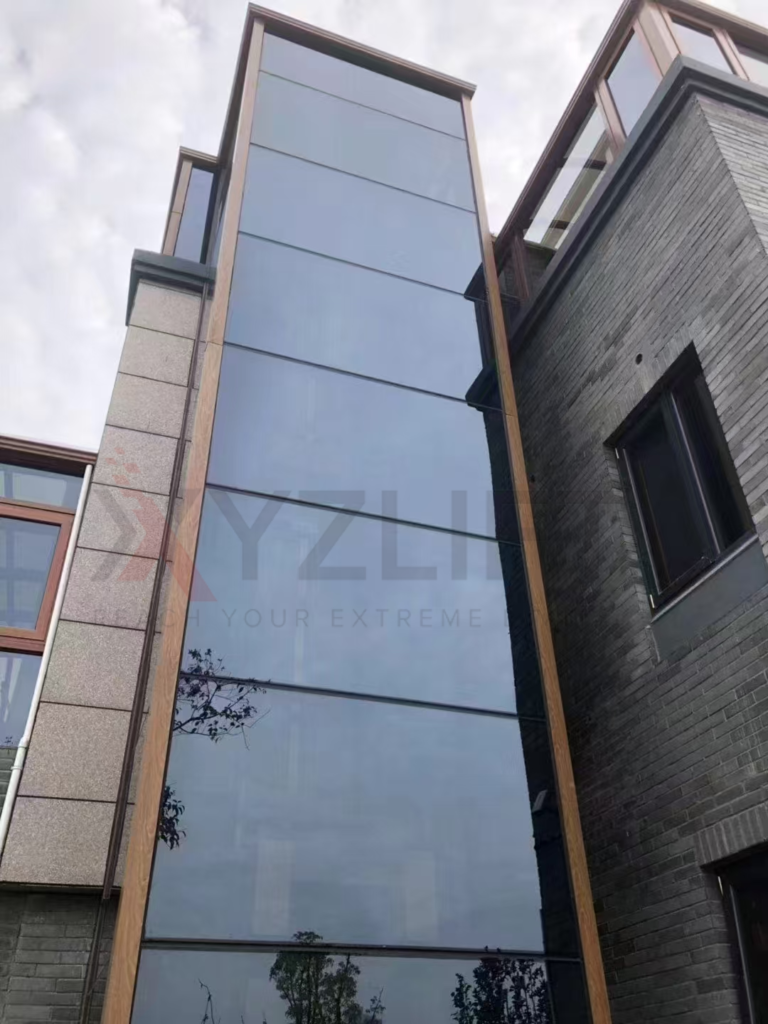

Outdoor Home Elevator

  • Load capacity 250kg
  • Car size 920*1000*2100mm
  • Two stop
  • Travel height 2.75m
  • Car wall are glass
  • Without car door
  • With shaft and glass
  • Shaft color black
  • Glass thickess ness 5+5mm double layer
  • Transparent Glass
  • Shaft material 100# aluminum
  • Adjacent opeing
  • Landing door: Swing door
  • Door opening size 900*2100mm
  • Installation size 1500*1200mm

For outdoor home lift installations, we can provide a robust 100# shaft frame with double-layered 5+5mm glass.

Design Your Home Elevator

Tailor Your Home Lift to Perfectly Match Your Home’s Style and Needs

Home Elevator Shaft Color Is Optional

The  shaft color of our home elevators is customizable. You can choose from black, white, gold, rose gold, or we can tailor the color according to the customer’s preference. Shaft color is not affect home elevator price.

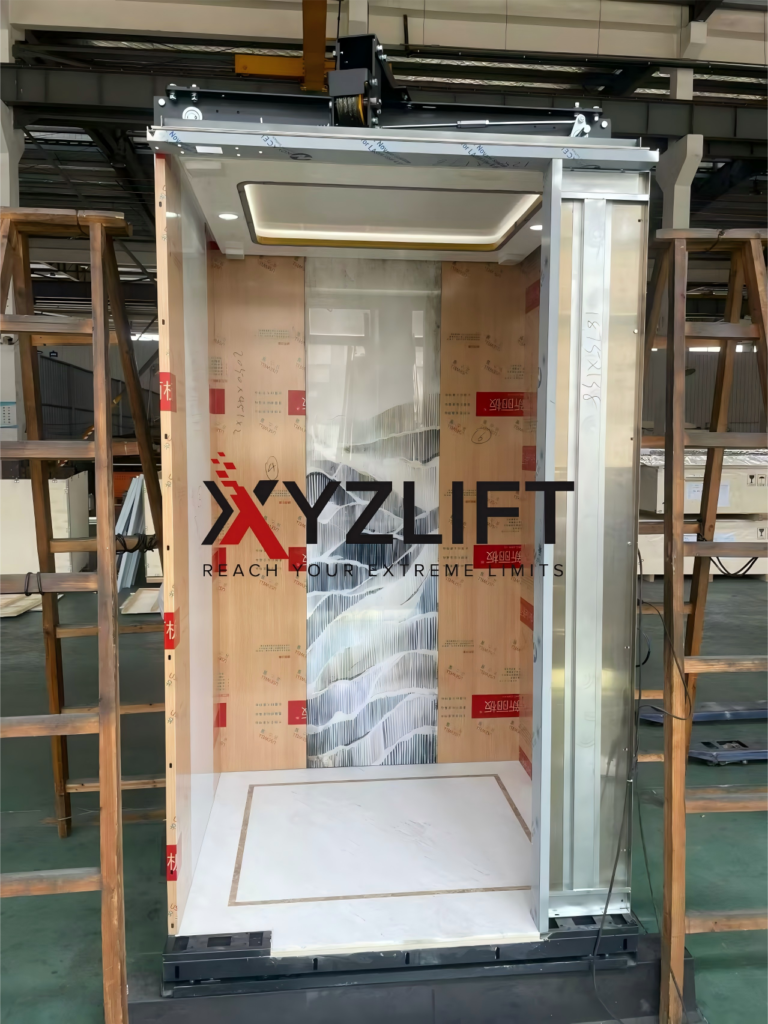

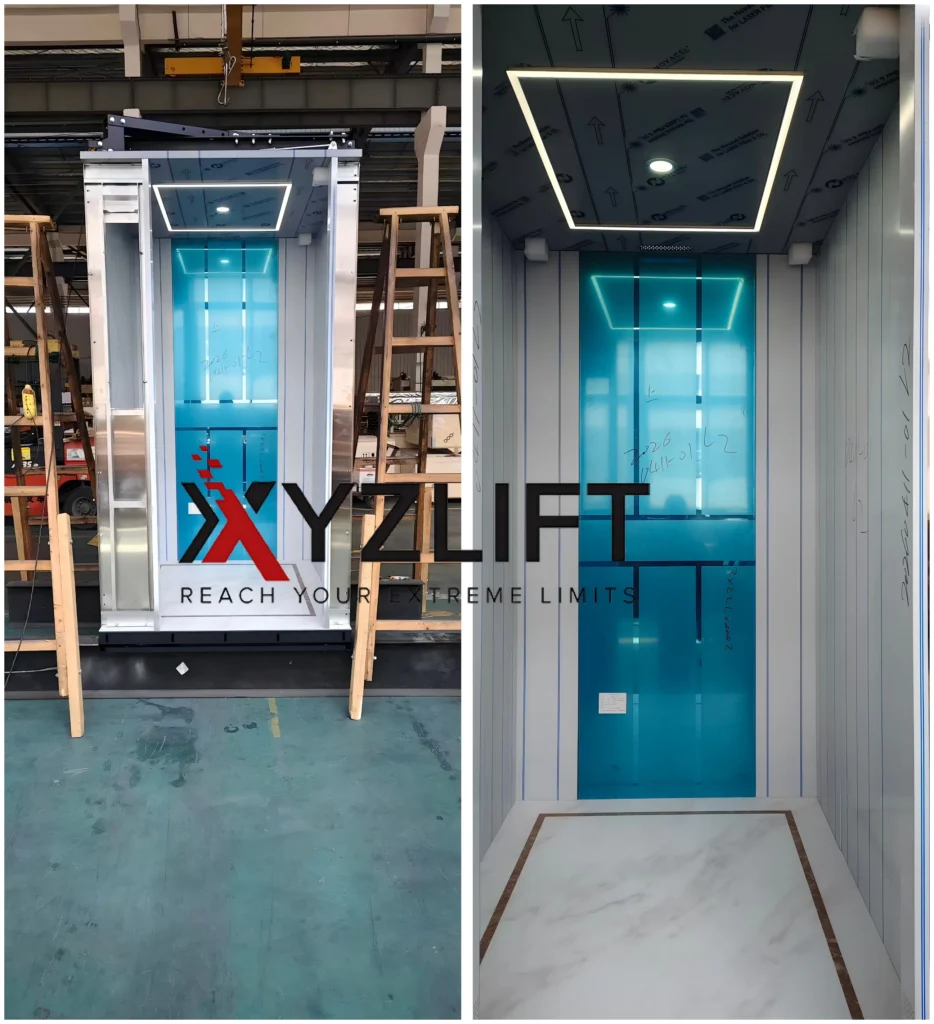

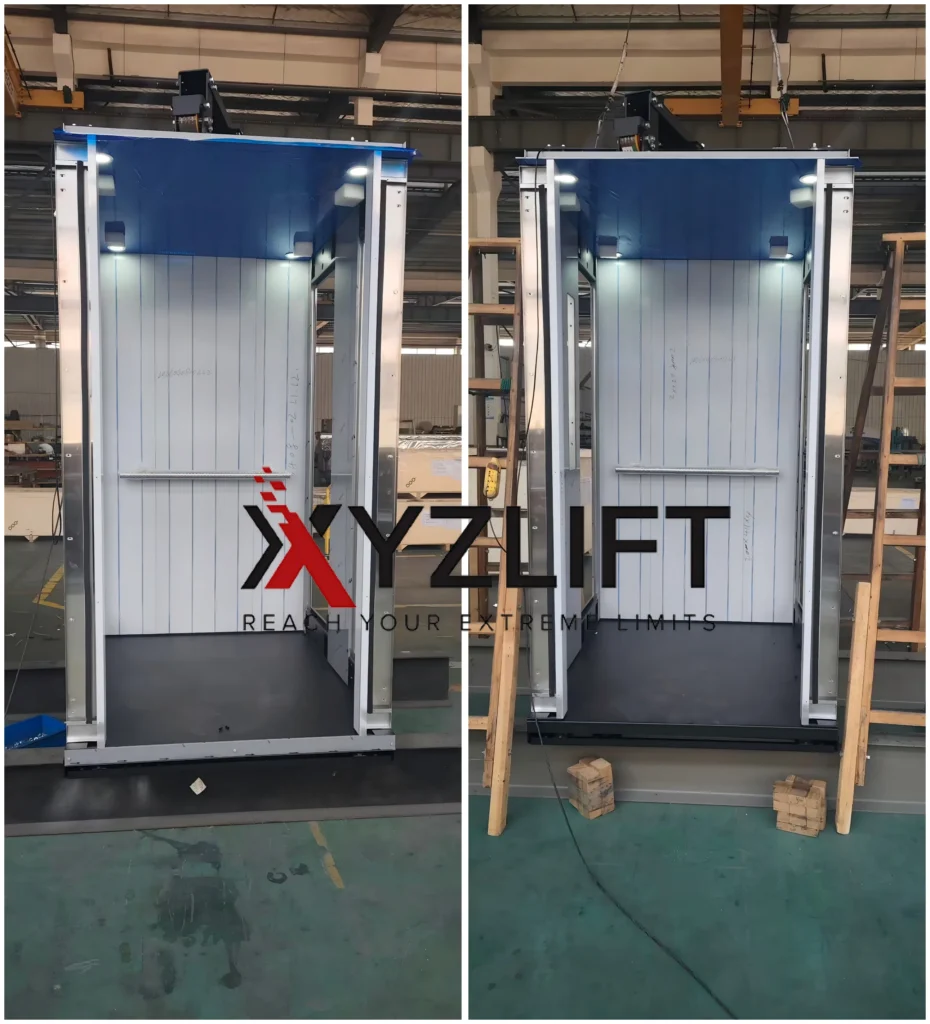

    Home Elevator Car Design


  1. Home elevator cabin walls are available in either stainless steel or glass.

  2. Stainless steel color options include original, black, rose gold, gold, and white.

  3. Glass colors can be chosen from clear, black, blue, and frosted glass.

  4. Stainless steel thickness options are 0.5mm, 0.8mm, and 1.2mm.

  5. Glass thickness choices include 5mm, 8mm, or 5+5mm double-layered glass.

Home Elevator Operation Panel


1. Floor number display

2. Floor number button

3. Emergecy stop

4. Alarm

6. Overload display

7. Intercom

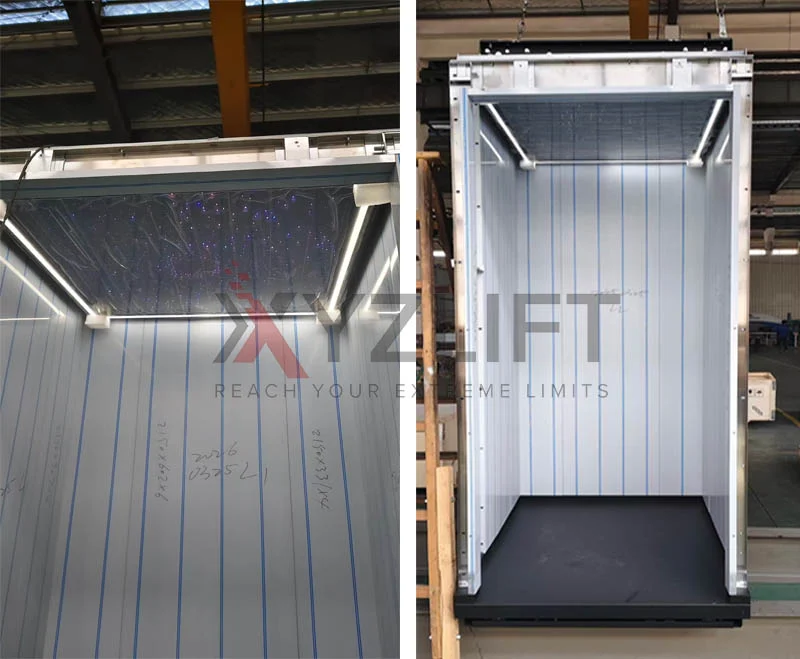

Home Elevator Ceiling And Floor
  1. The elevator cabin ceiling style is customizable based on client preferences。
  2. The cabin’s standard flooring is PVC, but there’s an option for clients to choose wooden flooring or ceramic tiles

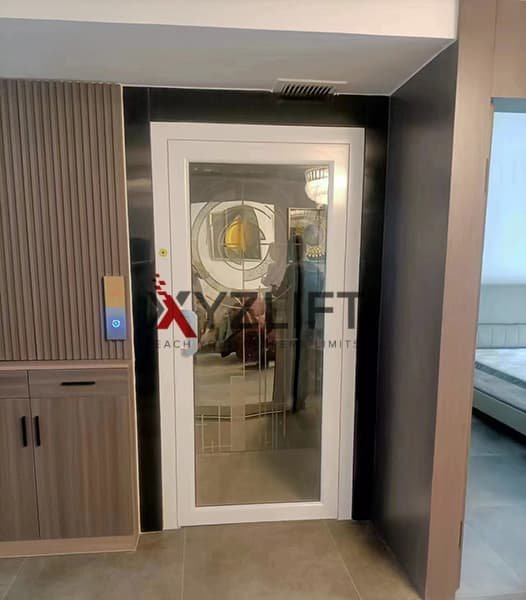

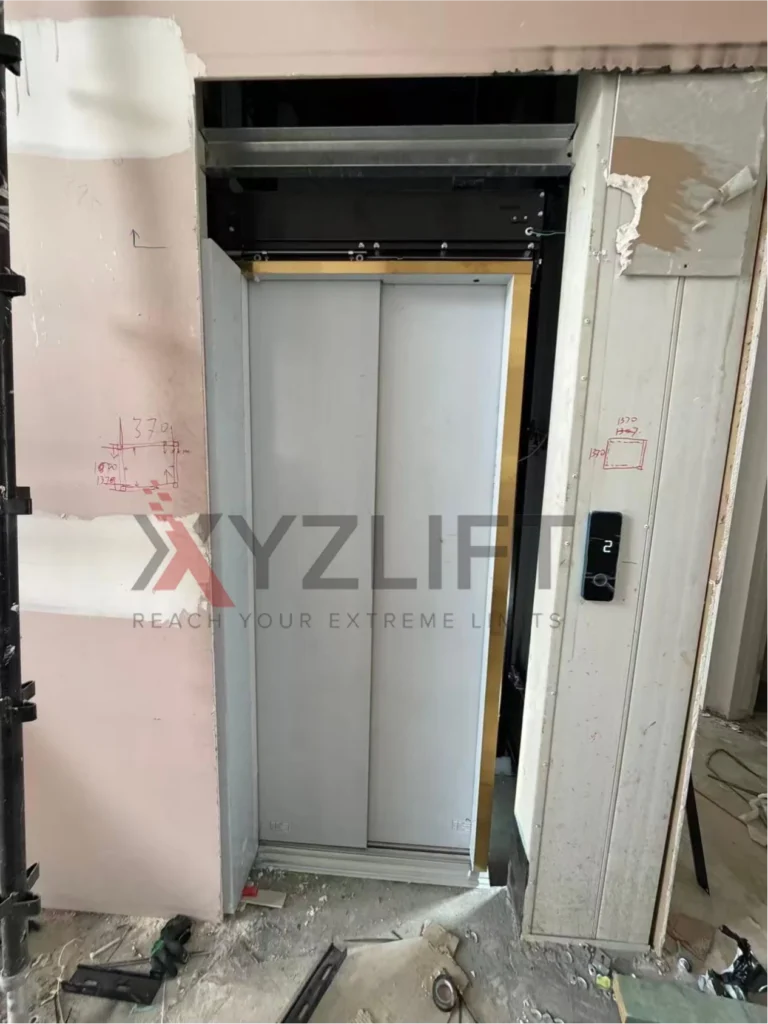

Home Elevator Landing Door

  1. Manual swing landing door
  2. Automatic swing landing door
  3. Aumtomatic middle open swing door
  4. Automatic sliding door
  1. Manual swing door

Ensuring Top-Notch Safety in Every Home Elevator

Hydraulic Home Lift With Multiple Fall Protection

  1. XYZLift’s hydraulic home elevator is equipped with four high-strength steel wire ropes, each capable of supporting a minimum load of 3000kg.
  2. XYZLift incorporates a speed-limiting plunger explosion-proof oil cylinder in our hydraulic home lift system. This essential safety feature is designed to regulate the lift’s speed, ensuring controlled and safe operation.
  3. Home lift is equipped with a safety gear device. In the event that the home lift’s speed exceeds the limit speed or if there is a rope breakage or slackening, the safety gear device engages. It swiftly brings the lift car to an emergency stop and securely clamps it onto the guide rails, providing effective protection for the lift’s operation.
  4. Home lift motor is equipped with an overflow valve, serving as a crucial safety feature to prevent excessive pressure during operation. This overflow valve plays a vital role in protecting against overloading.

5. Home elevator is equipped with a UPS power system, ensuring uninterrupted operation during power outages. In the event of a power failure, the UPS automatically provides backup power supply, allowing the lift to continue functioning seamlessly.
6. Home lift is equipped with an emergency stop button, allowing passengers to halt the lift’s operation in case of an emergency.
7. Home lift features an under-platform safety panel that serves as a crucial safety measure. When the home lift encounters an obstacle while descending, the system automatically stops the downward movement, preventing any unexpected accidents
8. The lift car and electric box of  home lift can be optionally equipped with a dedicated intercom system, allowing for one-touch emergency communication.

9. Our home lift equipped with a safety light curtain.The light curtain is a cutting-edge safety device that uses beams of light to detect any obstructions. If any beam is blocked, the control system immediately signals the doors to open and stops the lift’s movement, ensuring a safe and secure experience for you and your loved ones.

10. Home lift landing doors with a safety lock mechanism to ensure secure lift operation. These doors remain locked while the lift is in motion, preventing unauthorized access or accidental openings. Upon reaching the desired floor level, only the corresponding landing door open, enabling safe passenger entry and exit. This controlled access system enhances safety and prevents risks or disruptions by restricting the opening of landing doors on other floors.

11. We utilize Omron limit switches in our home lifts, ensuring accurate and reliable floor-level detection. We incorporate an additional final limit switch at the top floor as an extra safety precaution.

12. When the home lift reaches the desired floor level and passengers enter or exit the lift, the landing door automatically closed to provide a safe and secure environment. This automatic door closer simplifies the operation of the lift and ensures peace of mind for users, knowing that the door is securely closed when needed.

Diverse Home Elevator Installation Locations

Exploring a Range of Placement Options for Your Elevator

Home Elevator Installation in a Floor Hole

Outdoor Home Elevator Installation

Installing Home Elevators in Concrete Floors

Home Elevator Placement Adjacent to the Floor

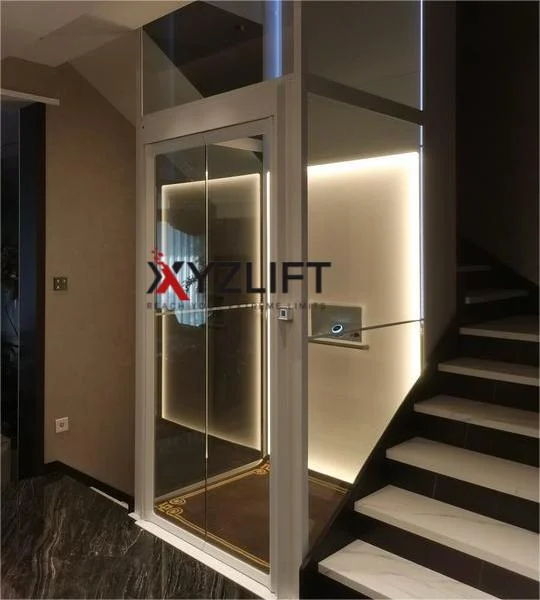

Home Elevator Solutions Near Stairs

Not found what you are looking for?

Operation & Maintenance

If you encounter any problems while using our home elevator, our experienced after-sales team will assist you in resolving them quickly.

Safety first concept.
Safety Instruction

Safety instructions posted next to home lift control buttons for secure machine operation.

Operation Guideline

before operate home lift, ready operation giuideline to operate home lift on right way

Maintenance Engineer
Maintenance Guideline

We provide a detailed daily maintenance checklist to ensure proper upkeep of the home lift.

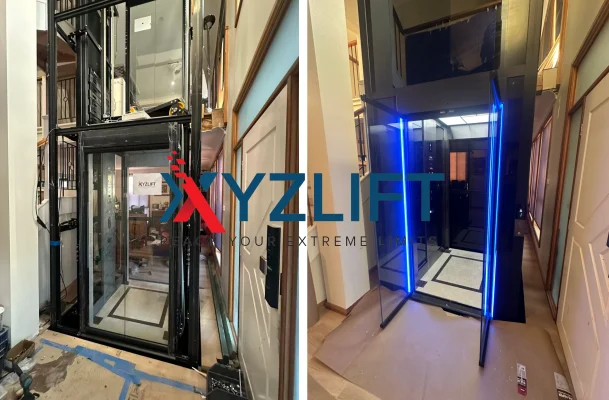

Showcasing Our Home Elevator Projects

A Tour of Innovative and Stylish Home Lift Installations

Home Elevator Video Showcase

Explore Our Collection of Elevator Designs and Installations

You May Want To Know For Home Elevator

The Home Lift is one of the most compact residential lifts currently available in the market. The car-only type home lift can be installed in a minimum footprint of just 1m by 1m. However, the final installation size would depend on the type of lift you require and the access opening. Please specify these details so that we can determine the exact space requirements for your Home Lift installation.

  • Home elevator with shaft

Installatation size as follows

Car inner size W+200mm

Car inner size D+590mm

  • Home elevator already have concrete shaft

Installation size as follows

Car inner size W+100mm

Car inner size W+490mm

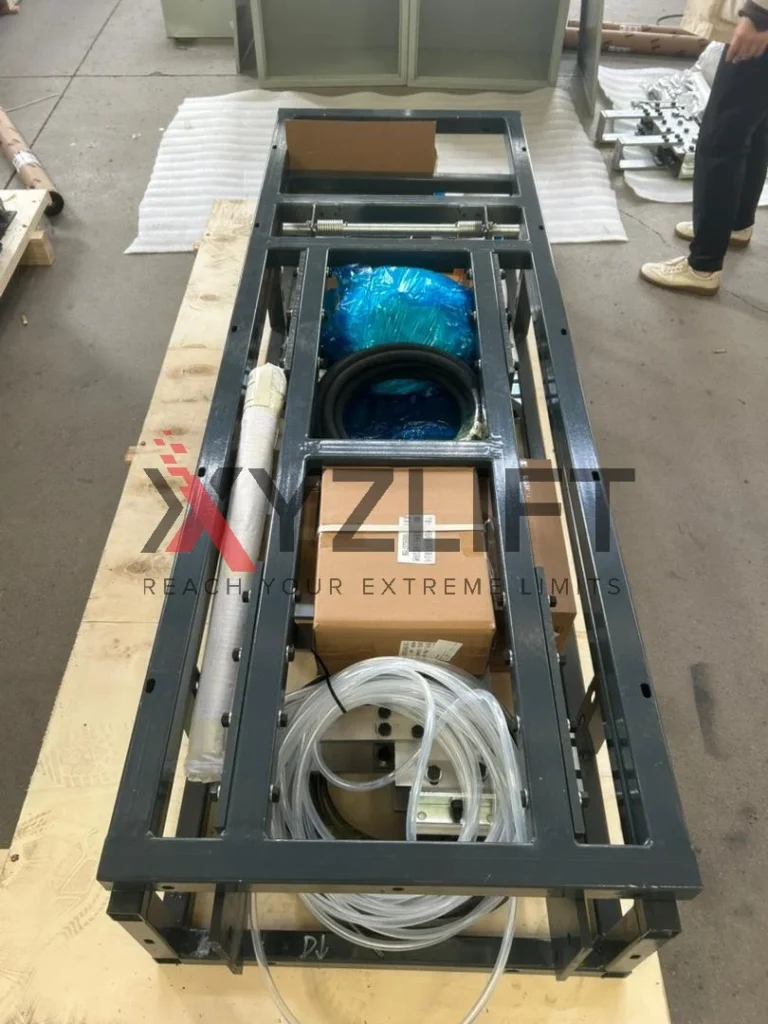

Installation is extremely simple; all the wiring is already connected, allowing for assembly according to the provided labels. We offer detailed installation videos and a comprehensive manual for the home elevator. Should any issues arise during the installation, you can immediately contact us via WhatsApp. The installation process will not be a barrier to purchasing a home elevator。

Here are some common locations where home lifts are typically installed:

Indoors: Installing a home lift inside the home is the most popular location. The lift can be installed in various configurations such as straight, curved, or even vertical. The installation process may involve retrofitting an existing staircase or creating a new opening in the floor to accommodate the lift.

Outdoors: A home lift may be installed outside the home, such as on a deck or balcony. This is a good option for homeowners who want to enjoy an outdoor view while riding the lift or for homes with limited interior space.

Garage: Installing a home lift within the garage is another popular location. If the garage is attached to the house and provides easy access to multiple levels, it can be an optimal location. A garage lift can also be used to transport vehicles between levels.

Basement: Installing a home lift in a basement can provide easy access to multiple levels of the home. A basement lift can also be used to transport heavy items such as furniture or appliances between levels.

(1) The cost of a Home Lift can vary based on several factors. These include the number of floors the lift will serve, the travel height required, whether the lift will be installed indoors or outdoors, which system would be the best fit for the home, the desired finish requirements for the elevator cab, and the thickness of glass selected. To get an accurate quote for your specific requirements, our sales team can conduct a free-of-charge initial site survey and provide you with a customized quote.

(2) As a rough estimate, our smallest model of Home Lift installed for two floors with standard fittings would cost around USD5,000.

Yes. The Home Lift is ideal for users with mobility issues as it gives them the freedom and independence to move around the home unhindered.
Yes, a Home Lift is an excellent option for individuals with mobility issues as it provides them with the freedom and independence to move around their home without any hindrance.
The Home Lift can accommodate wheelchairs and other mobility aids, making it an ideal solution for those with disabilities. It is also designed with safety features to ensure that users can operate the lift safely and independently.

Yes, we do sell traction home lifts. While traction elevators are typically used in buildings with over 60 feet of travel, traction home lifts are mostly used in higher-rise, heavy-use applications. These lifts offer a smooth ride quality and the ability to travel at high speeds.

If you’re interested in purchasing a traction home lift, please contact us for a free quote. Our team of experts can help you find the perfect lift for your needs and budget.

At XYZLIFT, we recommend annual maintenance for optimal performance and longevity of your hydraulic lift equipment. However, if the equipment is infrequently used, maintenance every two years may be sufficient.
To ensure the proper functioning of your home lift, we advise replacing the hydraulic oil every two years.

Yes, we have a pitless solution where the thickness of the elevator car floor is only 10cm. This low height allows for easy access in and out of the elevator car without the need for a traditional pit.

Custom Home Lifts That Suits Your Need

You will get accurate lift solution in 8 hours. Please supply main information as follows

Send a Message

Ask For A Quick Quote

We will contact you within 1 working day, please pay attention to the email info@xyzlift.com

Or contact us by whatsapp +86-18366130656

Safety Instructions for Home Llift

  1. Only trained and authorized personnel should operate the equipment.
  2. The home lift should not be used to lift people.
  3. Do not exceed the Safe Working Load (SWL) of the lift platform.
  4. Ensure that loads are centered on the lift platform.
  5. If the load is mobile, secure it in a fixed position before operating the lift.
  6. Keep the entire load within the perimeter of the platform during lift operation.
  7. Maintain clear areas beneath the platform and around the lift’s perimeter while it is in motion.
  8. Never work under the lift without the maintenance device(s) in place.

Operation Guideline for Home Lift

  1. Turn the power switch to “ON” after inserting the key.
  2. Release the Emergency Stop Button on the power station and control boxes.
  3. Ensure all doors are closed before operating the Lift Platform.
  4. Press the UP Button to raise the Lift Platform until it reaches the designated upper height.
  5. Press the DOWN Button to lower the Lift Platform until it reaches the designated lower height.
  6. Press the Emergency Stop Button in case of an emergency to halt the movement.
  7. In the event of control or power failure, open the Emergency Down Valve to lower the Lift Platform to the parking position.
  8. Turn off the Lift Platform by lowering it to the parking position and switching the power key to the “OFF” position.

Maintenance Guideline for Home Lift

  1. Daily inspection

Daily inspection is effective to find the malfunction or fault on the home lift. Before operation, check the lift according to the following points.

CAUTION!   Do not use the home lift if any malfunction or fault is found.

  • Check scratches, bending or crack on the lift.
  • Check smooth movement of the platform.
  • Check control panel ensure well working.
  • Check if there is any hydraulic oil leakage.
  • Check the vertical creep of the platform.
  1. Maintenance instructions
Inspection Contents Standard
Every 1 month
Lubricate all the joints and pivot points Keep lubricated
Limit switch for all floors Running normally
Guard-lock switch for landing door Running normally
Guard-lock switch for platform door Running normally
Motor pump station Running normally
Warning light Running normally
Control cabinet terminals No looseness, no damage
Chains No looseness, no damage
Wire ropes No looseness, no damage
Guide rails No deformation
Guard net No damage
All electric wires No damage
Accompanying cable No damage
Every 6 months
Check oil level of oil tank Keep clean and no oil leakage
Check the cleanliness of oil filter Keep clean
Fasten all the connecting parts again Fastened tightly
Check wear and tear of pressure oil pipes Replace new one if badly worn
Check hydraulic cylinder Keep no oil leakage
Fix main parts tighten again Fastened tightly
Check the function of micro-switches Running normally
Check whole working state of the lift Running normally
Every 1 year
Check wear and tear of all axial bushes No damage
Replace hydraulic oil Accumulated working 1000 hours
Check oil leaking No oil leakage
