Goods Lift Manufacturer

        Discover the Perfect Goods Lift for Your Needs

Get Solutions

Your Premier Factory-Direct Lift Supplier

Superior Quality Beyond Competitors

Also referred to as a freight elevator, cargo lift, warehouse lift, or mezzanine lift, the goods lift excels in vertical transportation between different floors. As a leading manufacturer of hydraulic goods lifts, XYZLIFT specialize in customizing lifts to meet unique customer requirements. With our expertise, we offer a wide range of options, including:

  • Load capacity ranges from 300kgs to 50,000kgs
  • Travel height up to 18 meters
  • Platfom size single side max 10m
  • Lifting Speed 4-6m/min
  • Entrance and exit direction: single side or two sides or three sides for option.
  • According to customer local voltage

Our team of experts collaborates closely with clients, ensuring that each cargo lift is meticulously designed, manufactured, and tested for safety and reliability. We prioritize delivering high-quality products that withstand demanding conditions.

Goods-Lift-3
Goods-Lift-5
Goods-Lift-2
Goods-Lift-6
Goods-Lift-4
Goods-Lift-8
Goods-Lift-7

Discover Our Diverse Range of Tailored Goods Lifts

Find the Perfect Goods Lift for Your Business Needs

  •   Lift Heavy Loads with Ease: What Weight Capacity Do You Need for Your Goods Lift?
Light Duty Load Goods Lift
  • Capacity: < 1000Kgs
  • Platform size less than 1500mm
Four Post Goods Lift
  • Capacity: 1000-10000Kgs
  • Meeting most customers’needs
Eight Post Goods Lift
  • Capacity: up to 50000kgs
  • Platform size: >5m
  •   Goods Lift Types by Add-on Equipment

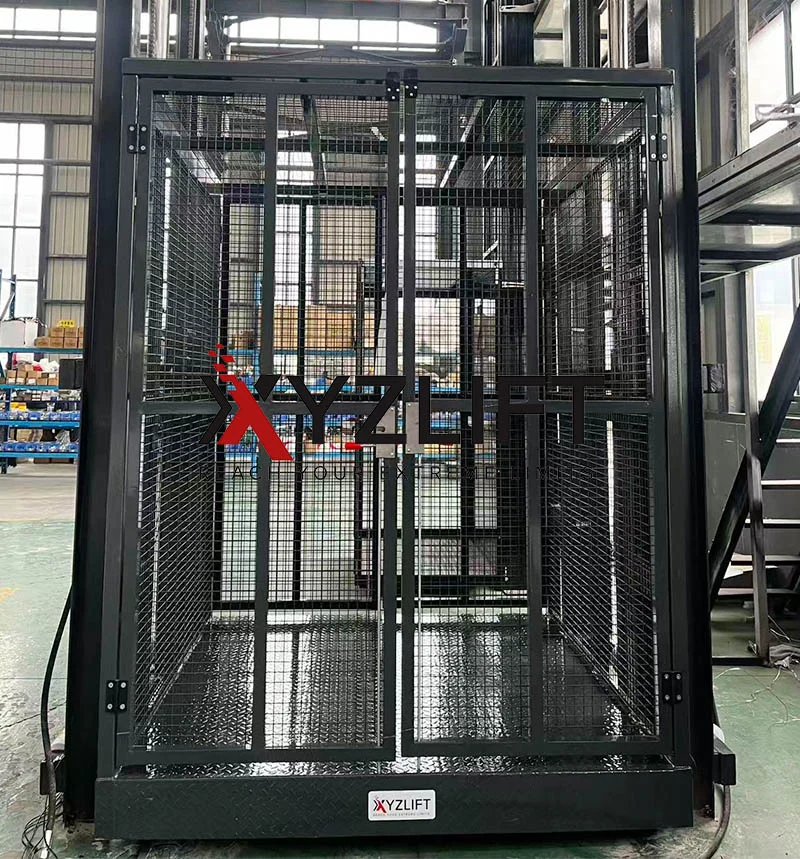

Full cover with swing door
SEND INQUIRY

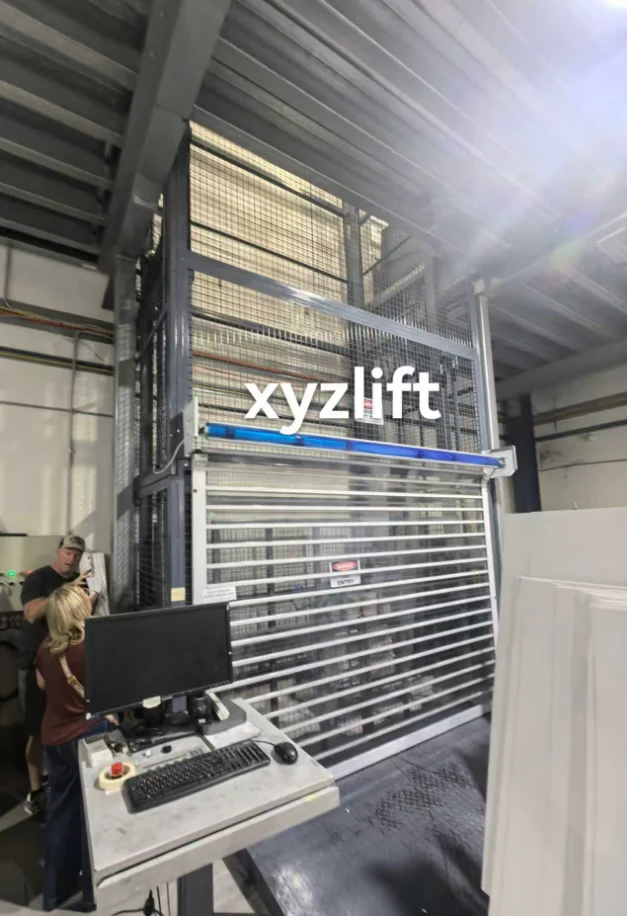

Full cover with roller door
SEND INQUIRY

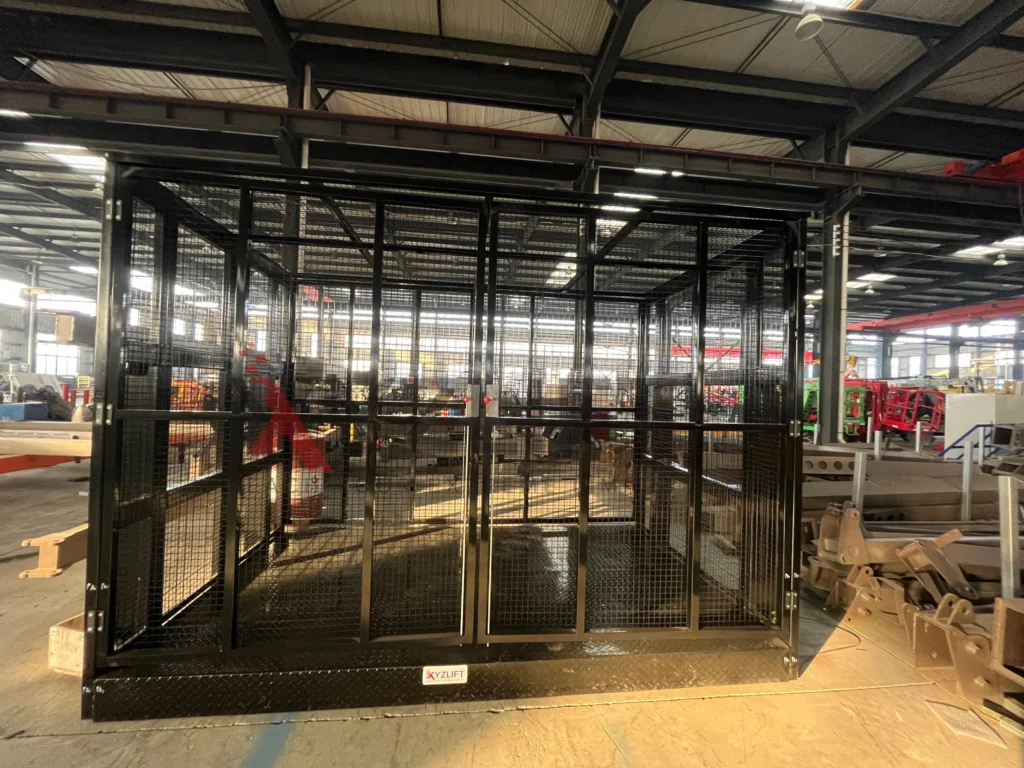

Cabin with automatic door

Special Goods Lift on Sale

 5 Customized Goods Lift with Special Surface Treatment or Functions

High Speed Goods Lift
Explosion Proof Goods Lift
Lift Platform with Weighing
Galvanized / Electrophoresis Goods Lift
Stainless Steel Goods Lift

Not found what you are looking for?

We could still help! Contact our team to find out more.

Get in Touch

Goods Lift Model List

Model List Load Capacity Lifting height Platform Size
XYZGL1-2.7 1000KG 2700MM 1600*1600MM
XYZGL1-3 1000KG 3000MM 2000*1500MM
XYZGL2-3 2000KG 3000MM 2500*2500MM
XYZGL3-3 3000KG 3000MM 2800*3000MM
XYZGL5-7 5000KG 7000MM 4000*35000MM
Customsized Tell us your parameters

Major Components for Goods Lift

1

Guide Rail

1 of 7 2

Platform

2 of 7 3

Hydraulic Cylinder

3 of 7 4

Power Pack

4 of 7 5

Control Panel

5 of 7 6

Limit Switch

6 of 7 7

Lifting system

7 of 7
1

Guide Rail

The goods lift guide rails are sourced from iron factories that comply with national standards. The thickness and hardness of the H-beams meet the required standards, ensuring goods lift quality.

2

Platform

The framework of the goods lift platform is designed based on the load capacity, with an anti-slip pattern plate on top. The platform is equipped with a 1.2m high guardrail to protect the goods.

3

Hydraulic Cylinder

The hydraulic cylinder used in the goods lift is specifically designed for hydraulic lifts. It features NSK seals from Japan.The cylinder is also equipped with an explosion-proof valve for added safety.

4

Power Pack

The hydraulic power unit of the goods lift is supplied by Siemens, known for its long lifespan and minimal maintenance requirements. It can be customized to customer's voltage.

5

Control Panel

Each floor is equipped with a control panel featuring a emergency stop button. The electrical components used are sourced from Schneider, ensuring reliable performance and safety.

6

Limit Switch

We utilize Omron limit switches in our goods lifts, ensuring accurate and reliable floor-level detection. We incorporate an additional final limit switch at the top floor as an extra safety precaution.

7

Lifting system

The lifting system of our lifts utilizes galvanized bear and wheel components, ensuring long-lasting durability and resistance to rust. This design ensures smooth and uninterrupted lifting operations.

Functions and Safety

We adhere to the EN81-31 and national Chinese elevator industry standards, with quality management in line with ISO9001, to provide users with a safer goods lift

Platform

  • Guard-lock for doors: The lift will only operate when all doors are closed. If a door is open, the goods lift will stop working.
  • Level gates: The landing doors are equipped with electrical and mechanical interlocks, preventing them from being opened while the lift is in operation. This ensures that objects cannot go under the lift during operation.
  • Anti-slip platform surface: The inner platform surface is made of anti-skid steel plate, providing traction and preventing cargo from sliding when the goods lift is moving up or down.

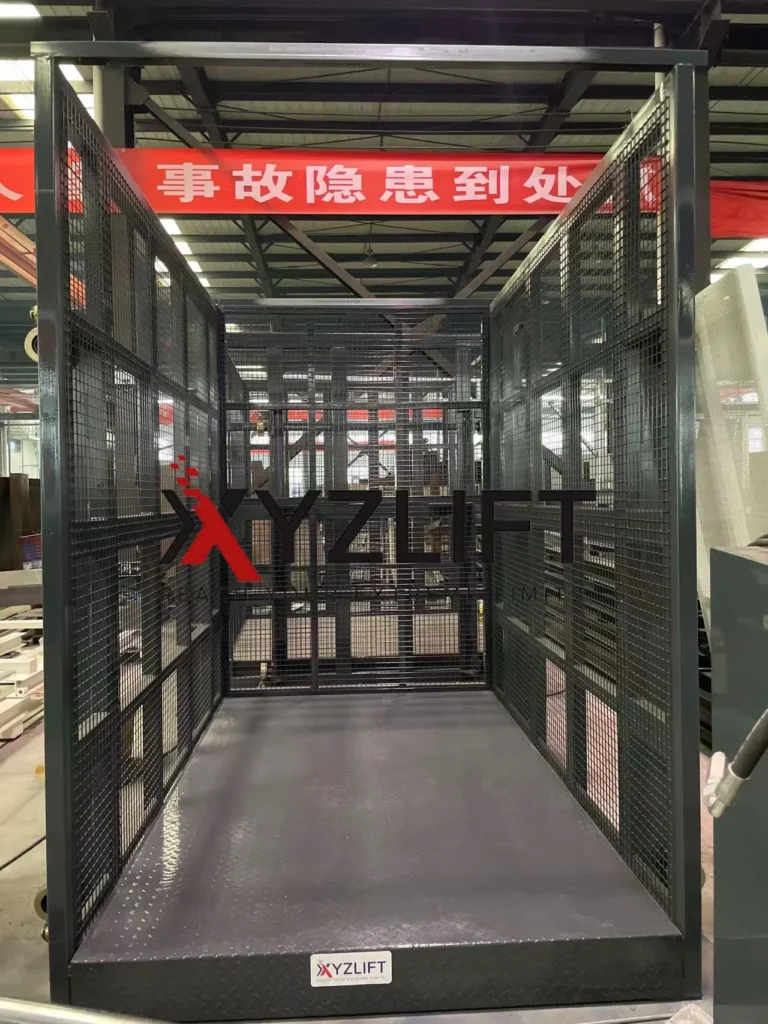

  • Platform with railings: The standard goods lift platform railings have a height of 1.2m, and they can also be customized to a higher height of 2.2m. This design feature prevents goods from falling off the platform during operation.

Control System

  • Emergency stop: The goods lift is equipped with an emergency stop button that immediately halts the operation in case of any emergency or hazardous situation.
  • Final limit switch: The final limit switch is positioned above the top floor level limit switch to prevent overtravel of the goods lift in case the top floor level limit switch malfunctions or fails to operate.
  • Voltage protection: The goods lift incorporates voltage protection mechanisms to safeguard the system from power fluctuations or electrical issues, ensuring safe and reliable operation.
  • Key switch to cut off power supply: A key switch is provided to cut off the power supply to the lift, allowing authorized personnel to secure and control the access to the equipment.

Hydraulic System

  • Overload protection: The goods lift is equipped with an overload protection system that automatically detects and prevents excessive weight from being lifted, ensuring safe operation.
  • Emergency descend valve: In the event of a sudden power failure, the goods lift is equipped with an emergency descend valve that allows the platform to safely descend to the nearest floor.
  • Hydraulic Cylinder with explosion-proof valve: The hydraulic cylinder of the goods lift is equipped with an explosion-proof valve, which prevents sudden descent of the lift in case of oil pipe damage, ensuring the safety of the lift and its occupants.
  • Pump station with case cover: The pump station of the goods lift is enclosed with a protective case cover, offering protection against adverse weather conditions and external forces.

Goods Lift Options to Enhance Your User Experience

You may have challenging issues before the purchase or during the use of a lift. Check our add-on equipment solutions in video and photos.

  • Q1.   Platform descending
  • Q2.   Concerns about the safety on upper floors,especially for the floor hole.
  • Q3.   Better brand motor and electric parts to meet your local certificate.

A1. Anti-drop system prevent lift decsending

For large platforms and heavely load goods lift, it is recommended to install this device to effectively prevent the lift from sinking or rebounding when it is reaching a level surface.

A2. Landing safety fence

Installing landing safety fences on each floor, especially on upper floors, can prevent people from getting too close, making mistakes, falling, and other risks.

A3. Advanced Configuration for Goods Lifts

Meeting High-End Customer Demands with SEW Motors, Customized Electrical Cabinets, and Wire Color Preferences.

Write to us if you meet other challenges

XYZLIFT Goods Lift Show

Play Video

Knowledge of Installation

Pit Issue

Installed in pit

Ramp instead of pit

Common installation scenarios

Floor Hole

On The Wall

In The Shaft

On The Mezzanine

Installation Steps

A 6-step guide to install a goods lift

Step 1  Platform positioning

Step 2  Connect guide rails with the platform

Step 3  Pump station installation

Step 4  Controller box

Step 5  Mesh cover

Step 6 Reinforce to the wall

Operation & Maintenance

If you encounter any problems while using our goods lift, our experienced after-sales team will assist you in resolving them quickly.

ASK FOR A solution
Safety first concept.
Safety Instruction

Safety instructions posted next to goods lift control buttons for secure machine operation.

Learn More
Operation Guideline

before operate goods lift, ready operation giuideline to operate goods lift on right way

Learn More
Maintenance Engineer
Maintenance Guideline

We provide a detailed daily maintenance checklist to ensure proper upkeep of the goods lift.

Learn More

Goods Lift Project Show

Estimated Cost Analysis For Goods Lift

Taking a 2-story goods lift with a 3m lifting height and a platform size of 1.2m x 1.2m as an example, the EXW price is around USD4000. The price is subject to fluctuations in the cost of raw materials, changes in exchange rates, and variations in the brand of accessories and add-on equipment.

Four guarde rail 23%
23%
Cylinder 20%
20%
Pump station 20%
20%
Chain and steel rope 17%
17%
Lifting system and bearing 6%
6%
Control System 14%
14%

Most Frequently Questions.

The delivery time for our goods lifts is 3–5 weeks from the order deposit.

To accurately specify a goods lift, we require the following information:Load capacity: Weight and type of materials to be lifted
Platform size: Size slightly larger than the materials being lifted or shaft size
Travel height: Distance between floors
Loading and unloading directions: Access from one side, opposite sides, or three sides
Special functions or requests: Higher speed, explosion-proof standards, weighing capabilities, specific surface treatments
Additional equipment: Optional items required, such as full mesh cover, electromagnetic fall protection, landing safety fence, roller door, etc.

Our goods lift can travel up to 22m, covering 7 floors.

Our heavy-duty goods lift can lift items weighing up to 100 tons, ensuring stability with thick steel and balance ropes.

Please provide the interested RAL color number, and we will produce the goods lift accordingly.

Custom Lifts That Suits Your Need

You will get accurate lift solution in 24 hours.Please supply main information as follows

  • Platform size W*D
  • Lifting height H
  • Load capacity
  • With or without Mesh Enclosed

Send a Message

From inquiry to design, from production to installation & after-sales service, we will do more than you think.
Facebook-f Linkedin-in Youtube
Product
Company

© 2023 COPYRIGHT JINAN XYZTECH MACHINARY CO., LTD.    |     COMPANY REGISTRATION NO. 91370100MA3N4C4B39.     |     ALL RIGHTS RESERVED

Ask For A Quick Quote

We will contact you within 1 working day, please pay attention to the email info@xyzlift.com

Or contact us by whatsapp +86-18366130656

Safety Instructions for Goods Lift

  1. Only trained and authorized personnel should operate the equipment.
  2. The goods lift should not be used to lift people.
  3. Do not exceed the Safe Working Load (SWL) of the lift platform.
  4. Ensure that loads are centered on the lift platform.
  5. If the load is mobile, secure it in a fixed position before operating the lift.
  6. Keep the entire load within the perimeter of the platform during lift operation.
  7. Maintain clear areas beneath the platform and around the lift’s perimeter while it is in motion.
  8. Never work under the lift without the maintenance device(s) in place.

Operation Guideline for Goods Lift

  1. Turn the power switch to “ON” after inserting the key.
  2. Release the Emergency Stop Button on the power station and control boxes.
  3. Ensure all doors are closed before operating the Lift Platform.
  4. Press the UP Button to raise the Lift Platform until it reaches the designated upper height.
  5. Press the DOWN Button to lower the Lift Platform until it reaches the designated lower height.
  6. Press the Emergency Stop Button in case of an emergency to halt the movement.
  7. In the event of control or power failure, open the Emergency Down Valve to lower the Lift Platform to the parking position.
  8. Turn off the Lift Platform by lowering it to the parking position and switching the power key to the “OFF” position.

Maintenance Guideline for Goods Lift

  1. Daily inspection

Daily inspection is effective to find the malfunction or fault on the goods lift. Before operation, check the lift according to the following points.

CAUTION!   Do not use the goods lift if any malfunction or fault is found.

  • Check scratches, bending or crack on the lift.
  • Check smooth movement of the platform.
  • Check control panel ensure well working.
  • Check if there is any hydraulic oil leakage.
  • Check the vertical creep of the platform.

  1. Maintenance instructions
Inspection Contents Standard
Every 1 month
Lubricate all the joints and pivot points Keep lubricated
Limit switch for all floors Running normally
Guard-lock switch for landing door Running normally
Guard-lock switch for platform door Running normally
Motor pump station Running normally
Warning light Running normally
Control cabinet terminals No looseness, no damage
Chains No looseness, no damage
Wire ropes No looseness, no damage
Guide rails No deformation
Guard net No damage
All electric wires No damage
Accompanying cable No damage
Every 6 months
Check oil level of oil tank Keep clean and no oil leakage
Check the cleanliness of oil filter Keep clean
Fasten all the connecting parts again Fastened tightly
Check wear and tear of pressure oil pipes Replace new one if badly worn
Check hydraulic cylinder Keep no oil leakage
Fix main parts tighten again Fastened tightly
Check the function of micro-switches Running normally
Check whole working state of the lift Running normally
Every 1 year
Check wear and tear of all axial bushes No damage
Replace hydraulic oil Accumulated working 1000 hours
Check oil leaking No oil leakage
