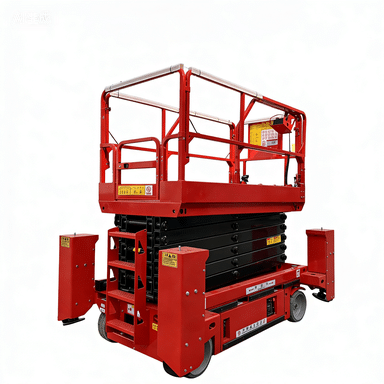

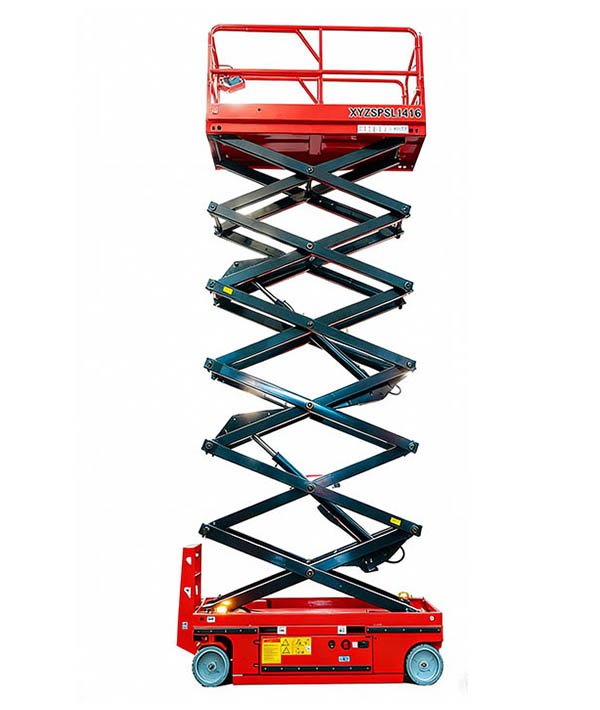

Standard Electric Scissor Man Lift
Find the Perfect Scissor Lift for Your Business Needs
- Capacity: < 1000Kgs
- Platform size less than 1500mm

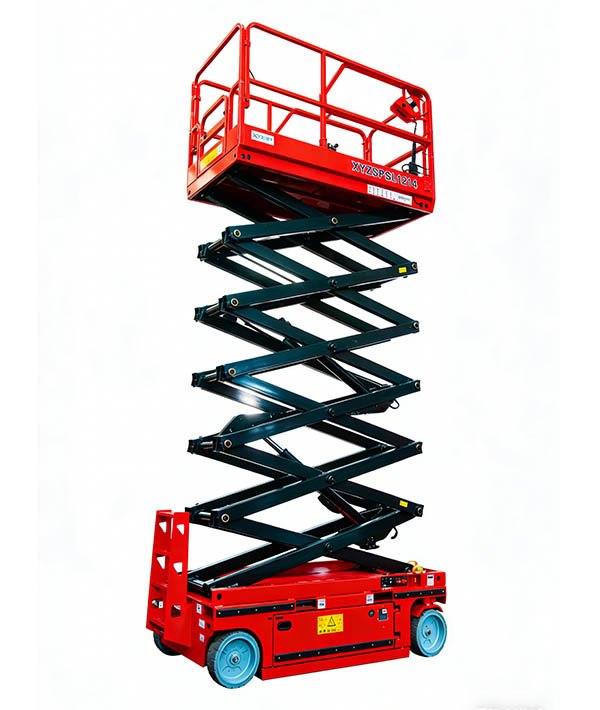

Standard Electric Scissor Man Lift Model List

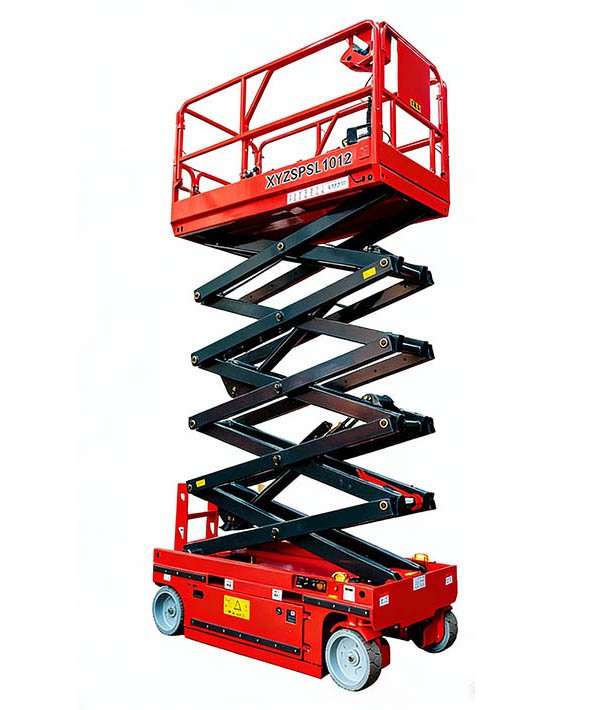

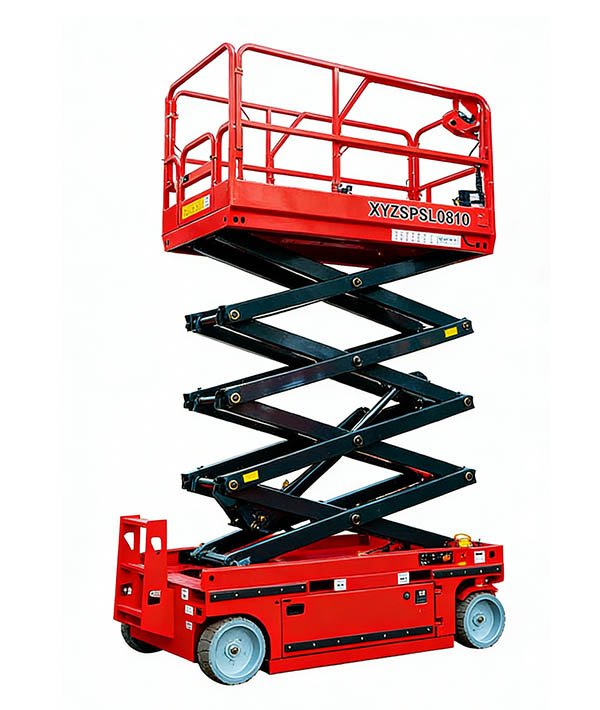

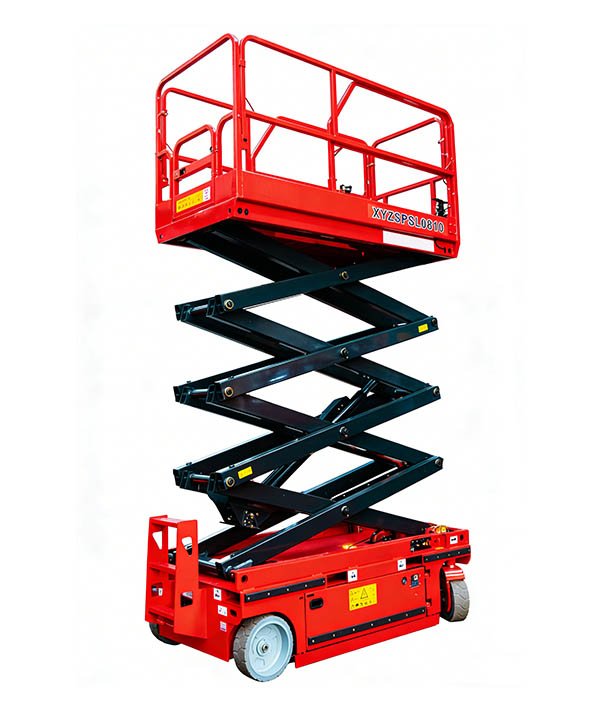

| Item | XYZSPSL0406 (narrow chassis) | XYZSPSL 0406 | XYZSPSL0608 (narrow chassis) | XYZSPSL 0608 | XYZSPSL0810 (narrow chassis) | XYZSPSL 0810 | XYZSPSL 1012 | XYZSPSL 1214 | XYZSPSL 1416 |
|---|---|---|---|---|---|---|---|---|---|
|
Rated Load Capacity |
230Kg |
230Kg |
230Kg |
450kg |
230Kg |
450kg |
320Kg |
320Kg |
230Kg |
|
Extension Platform |
110Kg |
113Kg |
113Kg |
113Kg |
113Kg |
113Kg |
113Kg |
113Kg |
100Kg |
|
Maximum Workers |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
|

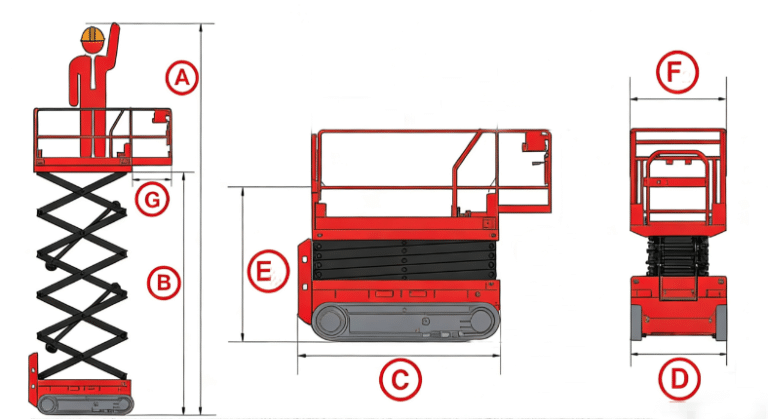

Working Height A |
6m |
6.5m |
7.8m |
8m |
10m |
10m |
12m |
13.80m |
15.80m |
|
Platform Height B |
4m |
4.5m |
5.8m |
6m |
8m |
8m |
10m |
11.80m |
13.80m |
|
Overall Length C |
1450mm |
1541mm |
1810mm |
2435mm |
2350mm |
2435mm |
2435mm |
2435mm |
2800mm |
|
Overall Width D |
780mm |
780mm |
780mm |
1170mm |
870mm |
1170mm |
1170mm |
1170mm |
1270mm |
|
Overall Height (Rails up) |
2010mm |
2100mm |
2100mm |
2250mm |
2350mm |
2435mm |
2435mm |
2435mm |
2800mm |
|
Overall Height E (Rails down) |
1620mm |
1690mm |
1700mm |
1685mm |
1950mm |
1810mm |
1935mm |
2060mm |
2130mm |
|
Platform Size F |
1300X680mm |
1390X740mm |
1670X740mm |
2270X1130mm |
2270X850mm |
2270X1130mm |
2270X1130mm |
2270X1130mm |
2640X1130mm |
|
Platform Extension Size G |
600mm |
600mm |
900mm |
900mm |
900mm |
900mm |
900mm |
900mm |
900mm |
|
Ground Clearance(Stowed) |
100mm |
75mm |
100mm |
100mm |
100mm |
100mm |
100mm |
100mm |
100mm |
|
Ground Clearance(Raised) |
20mm |
15mm |
20mm |
20mm |
20mm |
20mm |
20mm |
20mm |
20mm |
|
Wheel Base |
1050mm |
1100mm |
1360mm |
1890mm |
1860mm |
1890mm |
1890mm |
1890mm |
2240mm |
|
Turning Radius (Inside) |
0.5m |
0.5m |
0.5m |
0m |
0m |
0m |
0m |
0m |
0m |
|
Turning Radius (Outside) |
2.0m |
2.0m |
2.0m |
2.2m |
2.2m |
2.2m |
2.2m |
2.2m |
2.8m |
|
Lifting Motor |
24v/1.6Kw/1.2Kw |
24v/1.8Kw
|
24v/3.3Kw |
24v/4.5Kw |
24v/4.5Kw |
24v/4.5Kw |
24v/4.5Kw |
24v/4.5Kw |
24v/4.5Kw |
|
Travel Speed (Stowed) |
3.5Km/h |
3.5Km/h |
3.5Km/h |
3.5Km/h |
3.5Km/h |
3.5Km/h |
3.5Km/h |
3.5Km/h |
3.5Km/h |
|
Travel Speed (Raised) |
0.8Km/h |
0.8Km/h |
0.8Km/h |
0.8Km/h |
0.8Km/h |
0.8Km/h |
0.8Km/h |
0.8Km/h |
0.8Km/h |
|
UP/Down Speed |
3-5m/min |
3-5m/min |
3-5m/min |
3-5m/min |
3-5m/min |
3-5m/min |
3-5m/min |
3-5m/min |
3-5m/min |
|
Battery |
12V/86Ah*2 |
12V/86Ah*2 |
6V/200Ah*4 |
4*6V/200Ah |
4*6V/200Ah |
4*6V/200Ah |
4*6V/200Ah |
4*6V/200Ah |
4*6V/240Ah |
|
Charger |
12V/15A |
24V/15A |
24V/30A |
24V/30A |
24V/30A |
24V/30A |
24V/30A |
24V/30A |
24V/30A |
|

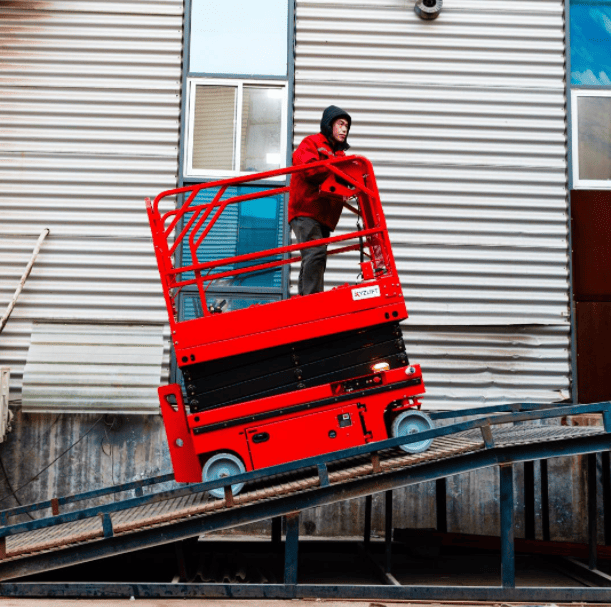

Grade ability |
25% |
25% |
25% |
25% |
25% |
25% |
25% |
25% |
25% |
|
Max. Working Slope |
1.5°/3° |
1.5°/3° |
1.5°/3° |
1.5°/3° |
1.5°/3° |
1.5°/3° |
1.5°/3° |
1.5°/3° |
1.5°/3° |
|
Tyre |
Φ230X80mm |
Φ305X110mm |
Φ305X110mm |
Φ381X127mm |
Φ381X127mm |
Φ381X127mm |
Φ381X127mm |
Φ381X127mm |
Φ381X127mm |
|
Overall Weight |
940Kg |
1150Kg |
1350Kg |
2200Kg |
2090Kg |
2400Kg |
2600Kg |
2850Kg |
3600Kg |

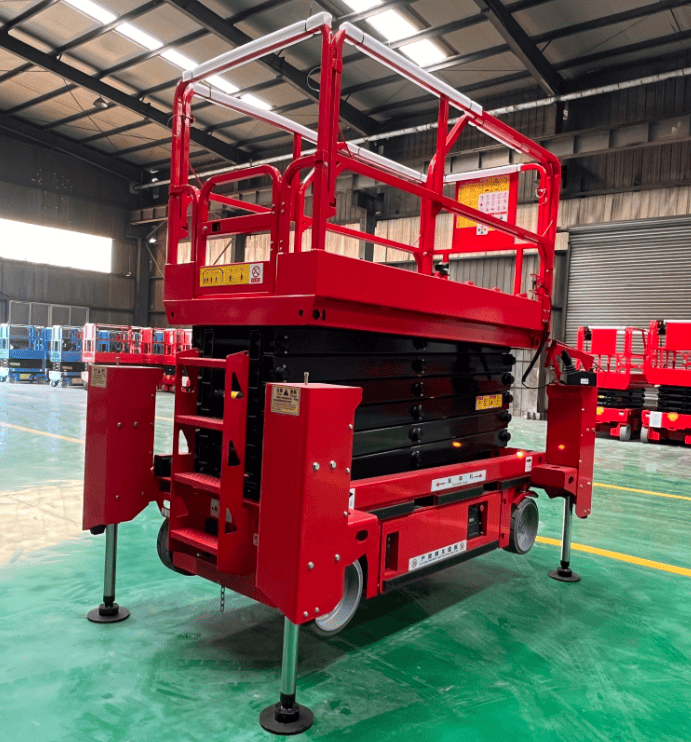

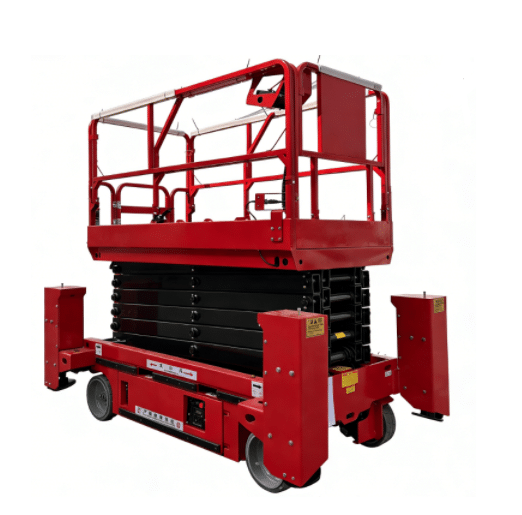

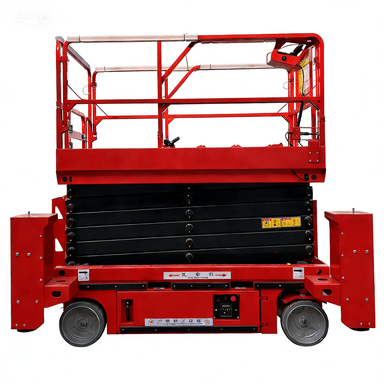

Electric Scissor Man Lift With Legs
The electric scissor lift with stabilizing legs for indoor and rugged terrain
Electric Scissor Man Lift With Legs Model List
| Table Header | Table Header | Table Header | Table Header |
|---|---|---|---|
|
Content |
Content |
Content |
Content |

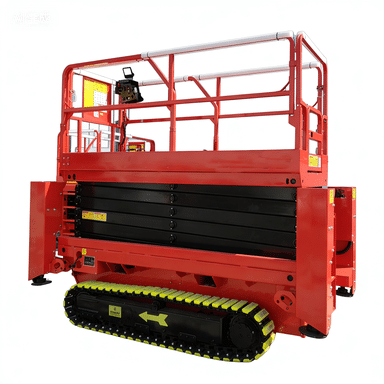

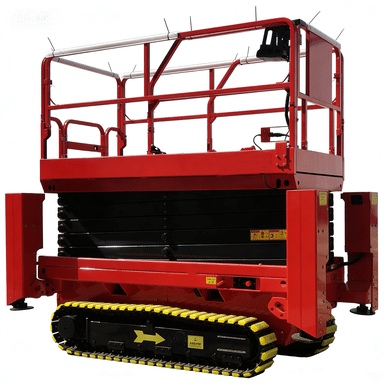

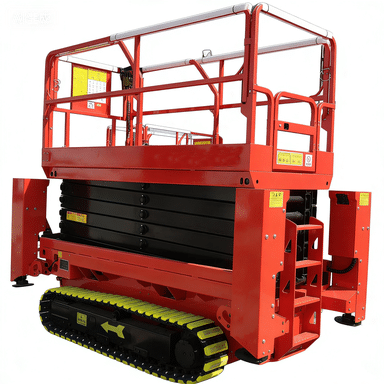

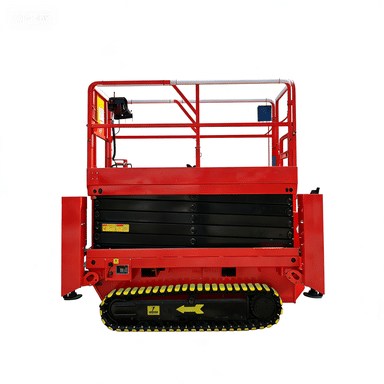

Crawler scissor lift
Crawler scisssor lift suitable rough terrain ground
Crawler Scissor Lift Model List
| Table Header | Table Header | Table Header | Table Header |
|---|---|---|---|
|
Content |
Content |
Content |
Content |
Scissor Man Lift Optional
XYZLIFT produce special scissor lift according to customer.
Electric Scissor Man Lift Safety
We adhere to the EN280 and quality management in line with ISO9001, to provide users with a safer goods lift
Platform
- Guard-lock for doors: The lift will only operate when all doors are closed. If a door is open, the goods lift will stop working.
- Level gates: The landing doors are equipped with electrical and mechanical interlocks, preventing them from being opened while the lift is in operation. This ensures that objects cannot go under the lift during operation.
- Anti-slip platform surface: The inner platform surface is made of anti-skid steel plate, providing traction and preventing cargo from sliding when the goods lift is moving up or down.
- Platform with railings: The standard goods lift platform railings have a height of 1.2m, and they can also be customized to a higher height of 2.2m. This design feature prevents goods from falling off the platform during operation.
Control System
- Emergency stop: The goods lift is equipped with an emergency stop button that immediately halts the operation in case of any emergency or hazardous situation.
- Final limit switch: The final limit switch is positioned above the top floor level limit switch to prevent overtravel of the goods lift in case the top floor level limit switch malfunctions or fails to operate.
- Voltage protection: The goods lift incorporates voltage protection mechanisms to safeguard the system from power fluctuations or electrical issues, ensuring safe and reliable operation.
- Key switch to cut off power supply: A key switch is provided to cut off the power supply to the lift, allowing authorized personnel to secure and control the access to the equipment.
Hydraulic System
- Overload protection: The goods lift is equipped with an overload protection system that automatically detects and prevents excessive weight from being lifted, ensuring safe operation.
- Emergency descend valve: In the event of a sudden power failure, the goods lift is equipped with an emergency descend valve that allows the platform to safely descend to the nearest floor.
- Hydraulic Cylinder with explosion-proof valve: The hydraulic cylinder of the goods lift is equipped with an explosion-proof valve, which prevents sudden descent of the lift in case of oil pipe damage, ensuring the safety of the lift and its occupants.
- Pump station with case cover: The pump station of the goods lift is enclosed with a protective case cover, offering protection against adverse weather conditions and external forces.
Goods Lift Options to Enhance Your User Experience
You may have challenging issues before the purchase or during the use of a lift. Check our add-on equipment solutions in video and photos.
- Q1. Platform descending
- Q2. Concerns about the safety on upper floors
- Q3. Better brand motor and electric parts
- Q4. Cargo entrace/exit could be 90 degree.
A1. Anti-drop system prevent lift decsending
For large platforms and heavely load goods lift, it is recommended to install this device to effectively prevent the lift from sinking or rebounding when it is reaching a level surface.
A2. Landing safety fence
Installing landing safety fences on each floor, especially on upper floors, can prevent people from getting too close, making mistakes, falling, and other risks.
A3. Advanced Configuration for Goods Lifts
Meeting High-End Customer Demands with SEW Motors, Customized Electrical Cabinets, and Wire Color Preferences.
A4. Cargo entrance/exit 90 degree
The goods lift platform open could be customsized according to customer, one side opening, opposite opening, 90 degree opening.
XYZLIFT Electric Scissor lift Working Video
Knowledge of Installation
Pit Issue
Installed in pit
Ramp instead of pit
Common installation scenarios
Floor Hole
On The Wall
In The Shaft
On The Mezzanine
Installation Steps
A 6-step guide to install a goods lift
Step 1 Platform positioning
Step 2 Connect guide rails with the platform
Step 3 Pump station installation
Step 4 Controller box
Step 5 Mesh cover
Step 6 Reinforce to the wall
Operation & Maintenance
If you encounter any problems while using our goods lift, our experienced after-sales team will assist you in resolving them quickly.
Safety instructions posted next to goods lift control buttons for secure machine operation.
before operate goods lift, ready operation giuideline to operate goods lift on right way
We provide a detailed daily maintenance checklist to ensure proper upkeep of the goods lift.
Goods Lift Project Show
Estimated Cost Analysis For Goods Lift
Taking a 2-story goods lift with a 3m lifting height and a platform size of 1.2m x 1.2m as an example, the EXW price is around USD4000. The price is subject to fluctuations in the cost of raw materials, changes in exchange rates, and variations in the brand of accessories and add-on equipment.
Most Frequently Questions.
The delivery time for our goods lifts is 3–5 weeks from the order deposit.
To accurately specify a goods lift, we require the following information:Load capacity: Weight and type of materials to be lifted
Platform size: Size slightly larger than the materials being lifted or shaft size
Travel height: Distance between floors
Loading and unloading directions: Access from one side, opposite sides, or three sides
Special functions or requests: Higher speed, explosion-proof standards, weighing capabilities, specific surface treatments
Additional equipment: Optional items required, such as full mesh cover, electromagnetic fall protection, landing safety fence, roller door, etc.
Our goods lift can travel up to 22m, covering 7 floors.
Our heavy-duty goods lift can lift items weighing up to 100 tons, ensuring stability with thick steel and balance ropes.
Please provide the interested RAL color number, and we will produce the goods lift accordingly.
Custom Lifts That Suits Your Need
You will get accurate lift solution in 24 hours.Please supply main information as follows
- Platform size W*D
- Lifting height H
- Load capacity
- With or without Mesh Enclosed
