All You Need To Know About Goods Lift
Table of Contents
The basic of goods lift
We are a leading manufacturer of cargo lifts, specializing in customizing lifts to meet unique customer requirements. With our expertise, we offer a wide range of options, including various load capacities, lifting heights, and platform sizes.
What sets us apart is our proficiency in developing specialized cargo lifts with unique features. From explosion-proof goods lifts to heavy-duty and large-sized lifts, we have the knowledge and experience to cater to diverse industry needs.
Our team of experts collaborates closely with clients, ensuring that each cargo lift is meticulously designed, manufactured, and tested for safety and reliability. We prioritize delivering high-quality products that withstand demanding conditions.
At our advanced manufacturing facility, we combine cutting-edge technology with precision engineering to produce exceptional cargo lifts. From start to finish, we ensure attention to detail, from design to installation, providing comprehensive support throughout the process.
As a trusted manufacturer, we are dedicated to customer satisfaction. Our tailored cargo lift solutions are renowned for their efficiency and durability. Join numerous businesses who have relied on us for reliable and customized cargo lift solutions.
Our Ranges of Goods Lift
Find the Perfect Goods Lift for Your Business Needs
- Lift Heavy Loads with Ease: What Weight Capacity Do You Need for Your Goods Lift?
- Capacity: < 1000Kgs
- Platform size less than 1500mm
- Capacity: 1000-10000Kgs
- Meeting most customers’needs
- Capacity: up to 50000kgs
- Platform size: >5m
- Goods Lift Types by Add-on Equipment
Special Goods Lift on Sale
5 Customized Goods Lift with Special Surface Treatment or Functions
Not found what you are looking for?
We could still help! Contact our team to find out more.
Major Components for Goods Lift
This is what we do when it comes to making wholesale coconut bowls:
Guide Rail
1 of 7 2Platform
2 of 7 3Hydraulic Cylinder
3 of 7 4Power Pack
4 of 7 5Control Panel
5 of 7 6Limit Switch
6 of 7 7Lifting system
7 of 71
Guide Rail
The goods lift guide rails are sourced from iron factories that comply with national standards. The thickness and hardness of the H-beams meet the required standards, ensuring goods lift quality.
2
Platform
The framework of the goods lift platform is designed based on the load capacity, with an anti-slip pattern plate on top. The platform is equipped with a 1.2m high guardrail to protect the goods.
3
Hydraulic Cylinder
The hydraulic cylinder used in the goods lift is specifically designed for hydraulic lifts. It features NSK seals from Japan.The cylinder is also equipped with an explosion-proof valve for added safety.
4
Power Pack
The hydraulic power unit of the goods lift is supplied by Siemens, known for its long lifespan and minimal maintenance requirements. It can be customized to customer's voltage.
5
Control Panel
Each floor is equipped with a control panel featuring a emergency stop button. The electrical components used are sourced from Schneider, ensuring reliable performance and safety.
6
Limit Switch
We utilize Omron limit switches in our goods lifts, ensuring accurate and reliable floor-level detection. We incorporate an additional final limit switch at the top floor as an extra safety precaution.
7
Lifting system
The lifting system of our lifts utilizes galvanized bear and wheel components, ensuring long-lasting durability and resistance to rust. This design ensures smooth and uninterrupted lifting operations.
Functions and Safety
We adhere to the EN81-31 and national Chinese elevator industry standards, with quality management in line with ISO9001, to provide users with a safer goods lift
Platform
- Guard-lock for doors: The lift will only operate when all doors are closed. If a door is open, the goods lift will stop working.
- Level gates: The landing doors are equipped with electrical and mechanical interlocks, preventing them from being opened while the lift is in operation. This ensures that objects cannot go under the lift during operation.
- Anti-slip platform surface: The inner platform surface is made of anti-skid steel plate, providing traction and preventing cargo from sliding when the goods lift is moving up or down.
- Platform with railings: The standard goods lift platform railings have a height of 1.2m, and they can also be customized to a higher height of 2.2m. This design feature prevents goods from falling off the platform during operation.
Control System
- Emergency stop: The goods lift is equipped with an emergency stop button that immediately halts the operation in case of any emergency or hazardous situation.
- Final limit switch: The final limit switch is positioned above the top floor level limit switch to prevent overtravel of the goods lift in case the top floor level limit switch malfunctions or fails to operate.
- Voltage protection: The goods lift incorporates voltage protection mechanisms to safeguard the system from power fluctuations or electrical issues, ensuring safe and reliable operation.
- Key switch to cut off power supply: A key switch is provided to cut off the power supply to the lift, allowing authorized personnel to secure and control the access to the equipment.
Hydraulic System
- Overload protection: The goods lift is equipped with an overload protection system that automatically detects and prevents excessive weight from being lifted, ensuring safe operation.
- Emergency descend valve: In the event of a sudden power failure, the goods lift is equipped with an emergency descend valve that allows the platform to safely descend to the nearest floor.
- Hydraulic Cylinder with explosion-proof valve: The hydraulic cylinder of the goods lift is equipped with an explosion-proof valve, which prevents sudden descent of the lift in case of oil pipe damage, ensuring the safety of the lift and its occupants.
- Pump station with case cover: The pump station of the goods lift is enclosed with a protective case cover, offering protection against adverse weather conditions and external forces.
Goods Lift Options to Enhance Your User Experience
You may have challenging issues before the purchase or during the use of a lift. Check our add-on equipment solutions in video and photos.
- Q1. Platform descending
- Q2. Concerns about the safety on upper floors
- Q3. Better brand motor and electric parts
- Q4. Cargo entrace/exit could be 90 degree.

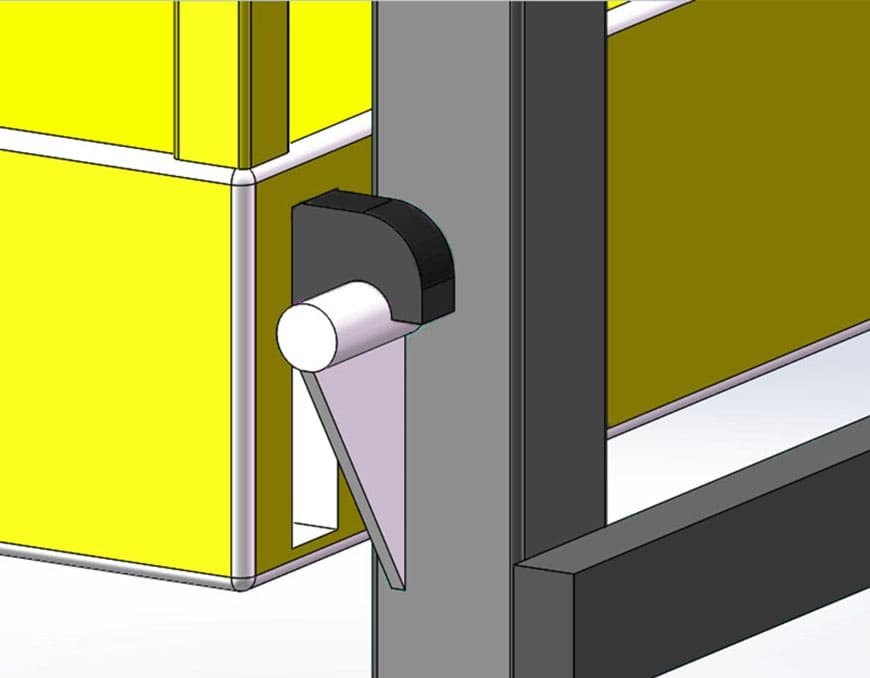

A1. Anti-drop system prevent lift decsending
For large platforms and heavely load goods lift, it is recommended to install this device to effectively prevent the lift from sinking or rebounding when it is reaching a level surface.
A2. Landing safety fence
Installing landing safety fences on each floor, especially on upper floors, can prevent people from getting too close, making mistakes, falling, and other risks.
A3. Advanced Configuration for Goods Lifts
Meeting High-End Customer Demands with SEW Motors, Customized Electrical Cabinets, and Wire Color Preferences.
A4. Cargo entrance/exit 90 degree
The goods lift platform open could be customsized according to customer, one side opening, opposite opening, 90 degree opening.
