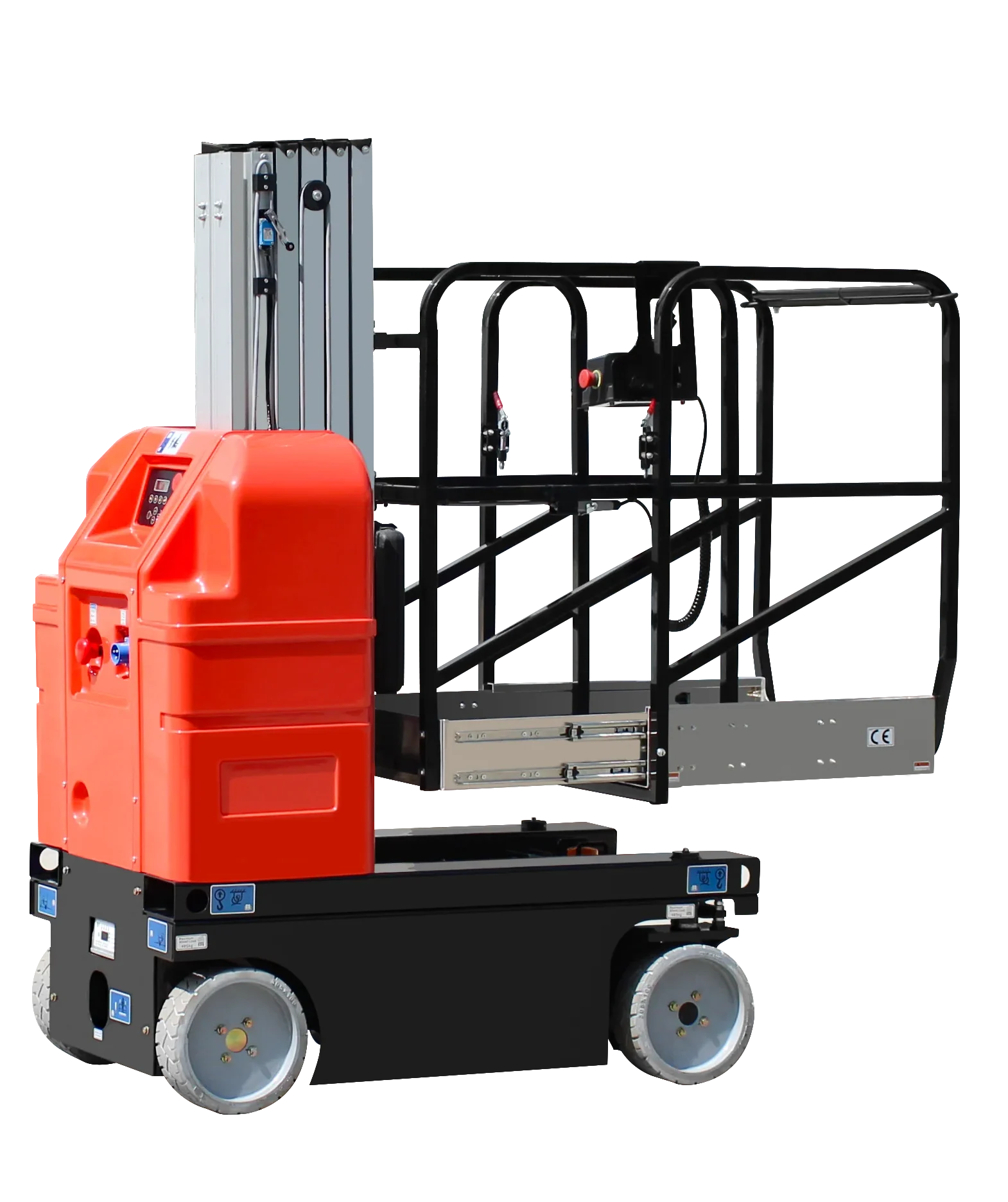

Our Self-Propelled Vertical Lift

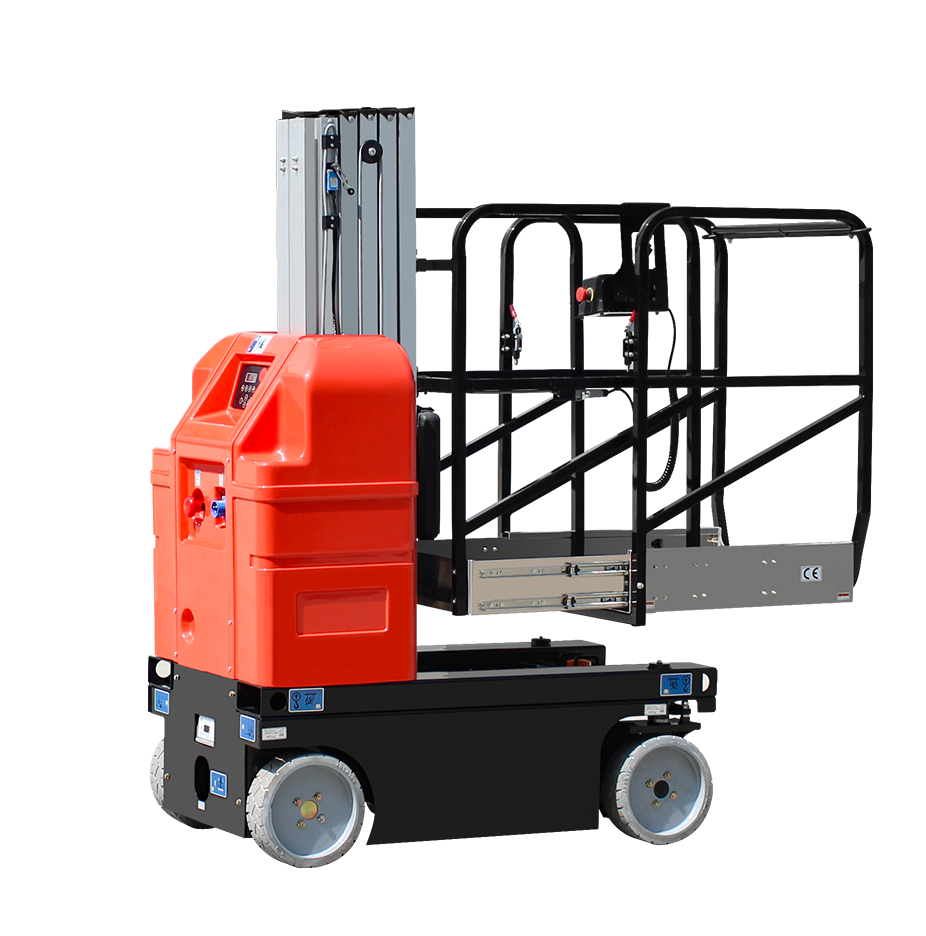

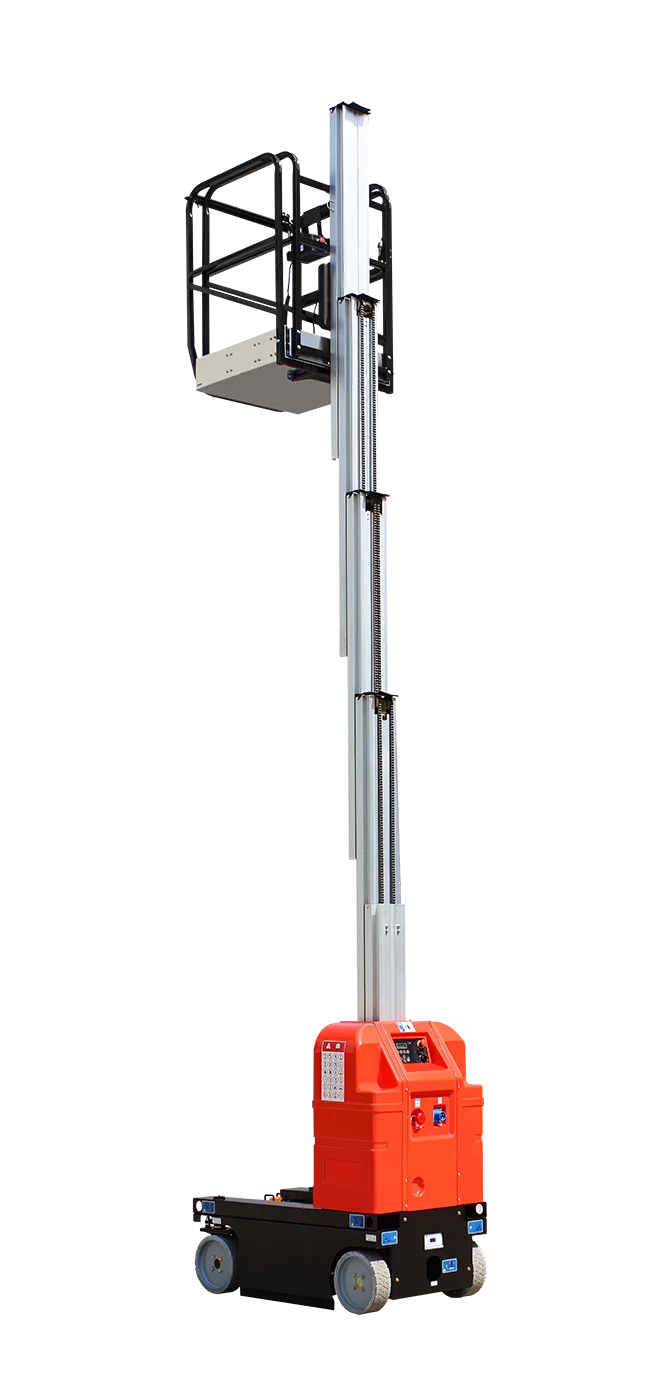

AMWP6-1100/AMWP7.5-1100

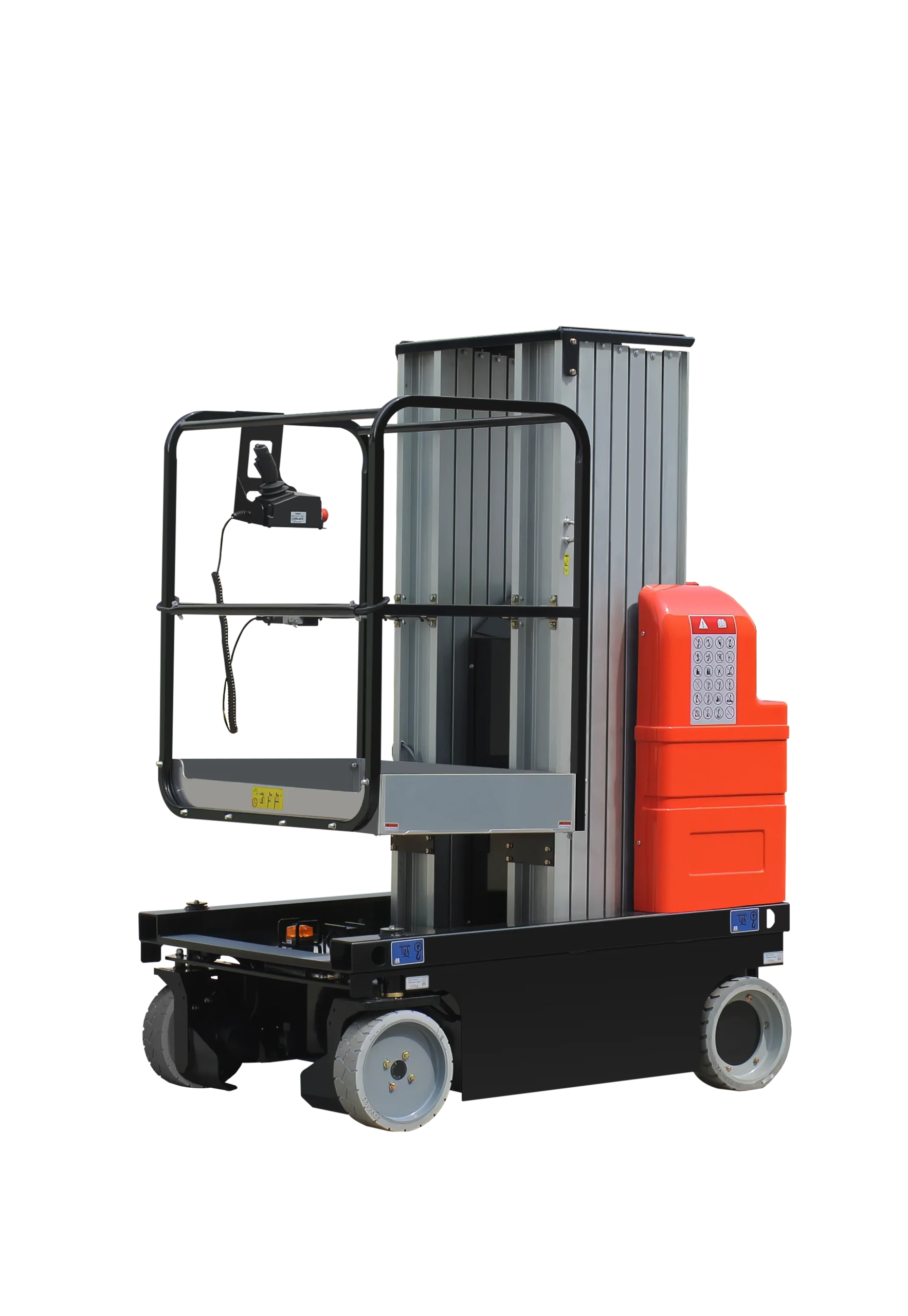

AMWP7.5-2100/9-2100
Self-Propelled Vertical Model List
| Parameter | AMWP6-1100 | AMWP7.5-1100 | AMWP7.5-2100 | AMWP9-2100 |
|---|---|---|---|---|
| Max. Working Height | 8.00m | 9.50m | 9.50m | 11.00m |
| Max. Platform Height | 6.00m | 7.50m | 7.50m | 9.00m |
| Loading Capacity | 150kg | 125kg | 200kg | 150kg |
| Occupants | 1 | 1 | 1 | 1 |
| Overall Length | 1.40m | 1.40m | 1.46m | 1.46m |
| Overall Width | 0.76m | 0.76m | 1.01m | 1.01m |
| Overall Height | 1.99m | 1.99m | 2.03m | 2.03m |
| Platform Dimension | 0.66m*0.67m | 0.66m*0.67m | 1.00m*0.65m | 1.00m*0.65m |
| Wheelbase | 1.07m | 1.07m | 1.14m | 1.14m |
| Turning Radius | 0.3m | 0.3m | 0.3m | 0.3m |
| Travel Speed(Stowed) | 3.5km/h | 3.5km/h | 4km/h | 4km/h |
| Travel Speed(Raised) | 0.8km/h | 0.8km/h | 1.1km/h | 1.1km/h |
| Up/Down Speed | 48/40sec | 53/45sec | 48/40sec | 56/49sec |
| Gradeability | 25% | 25% | 25% | 25% |
| Drive Tyres | Φ305*100mm | Φ305*100mm | Φ305*100mm | Φ305*100mm |
| Drive Motors | 2*24VDC/0.5kW | 2*24VDC/0.5kW | 2*24VDC/0.5kW | 2*24VDC/0.5kW |
| Lifting Motor | 24VDC/1.2kW | 24VDC/1.2kW | 24VDC/1.3kW | 24VDC/1.3kW |
| Battery | 2*12V/100Ah | 2*12V/100Ah | 2*12V/100Ah | 2*12V/100Ah |
| Charger | 24V/15A | 24V/15A | 24V/15A | 24V/15A |
| Weight | 1120kg | 1190kg | 1270kg | 1345kg |

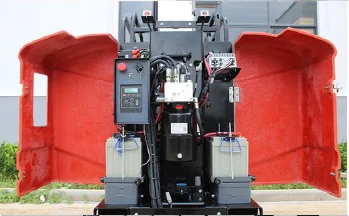

Major Components for Self-Propelled Vertical Lift
1
2
3
4
5
6
7
8
9
10
1
Top-mounted socket
6
ECU panel
2
Extended Platform
7
Standard forklift hole
3
Anti-blocking
8
Anti-collision strip
4
Chain self-leveling
9
Non-marking tires
5
Anti-smashing warning light
10
Pothole Protection System
11
12
13
14
15
16
17
18
19
20
11
Synchronization device
16
Oil collection tray
12
Screw-on protective cover
17
Fixed upper control handle
13
Distributed layout
18
Anti-collision strip
14
Level sensing
19
Chain inspection hole
15
Emergency descent system
20
Fully immersed hydraulic cylinder
Custom Self-Propelled Vertical Lifts That Suits Your Need
You will get accurate lift solution in 24 hours.Please supply main information as follows
