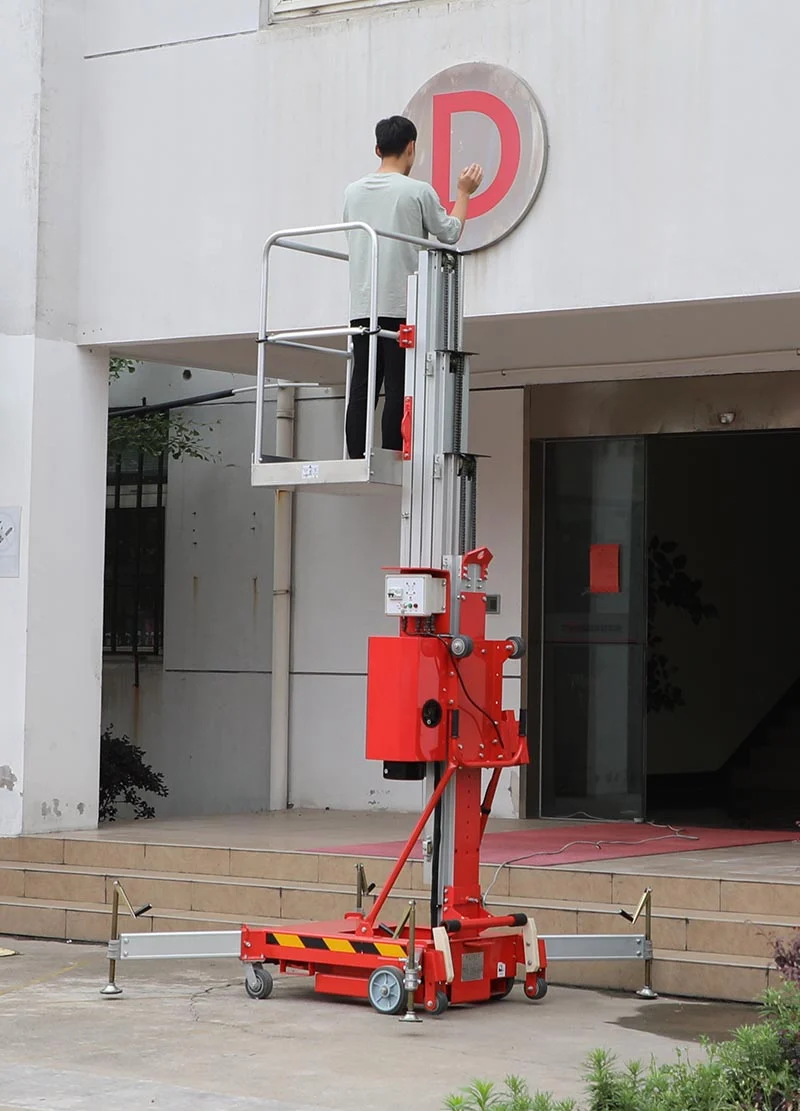

Our Vertical Mast Lift
Find the Perfect Mast Lift for Your Business Needs
GTWY1-5,1-1-6/1-8/1-9/1-10/1-12
Single Mast from 4.7m to 12m
Load capacity 100kg

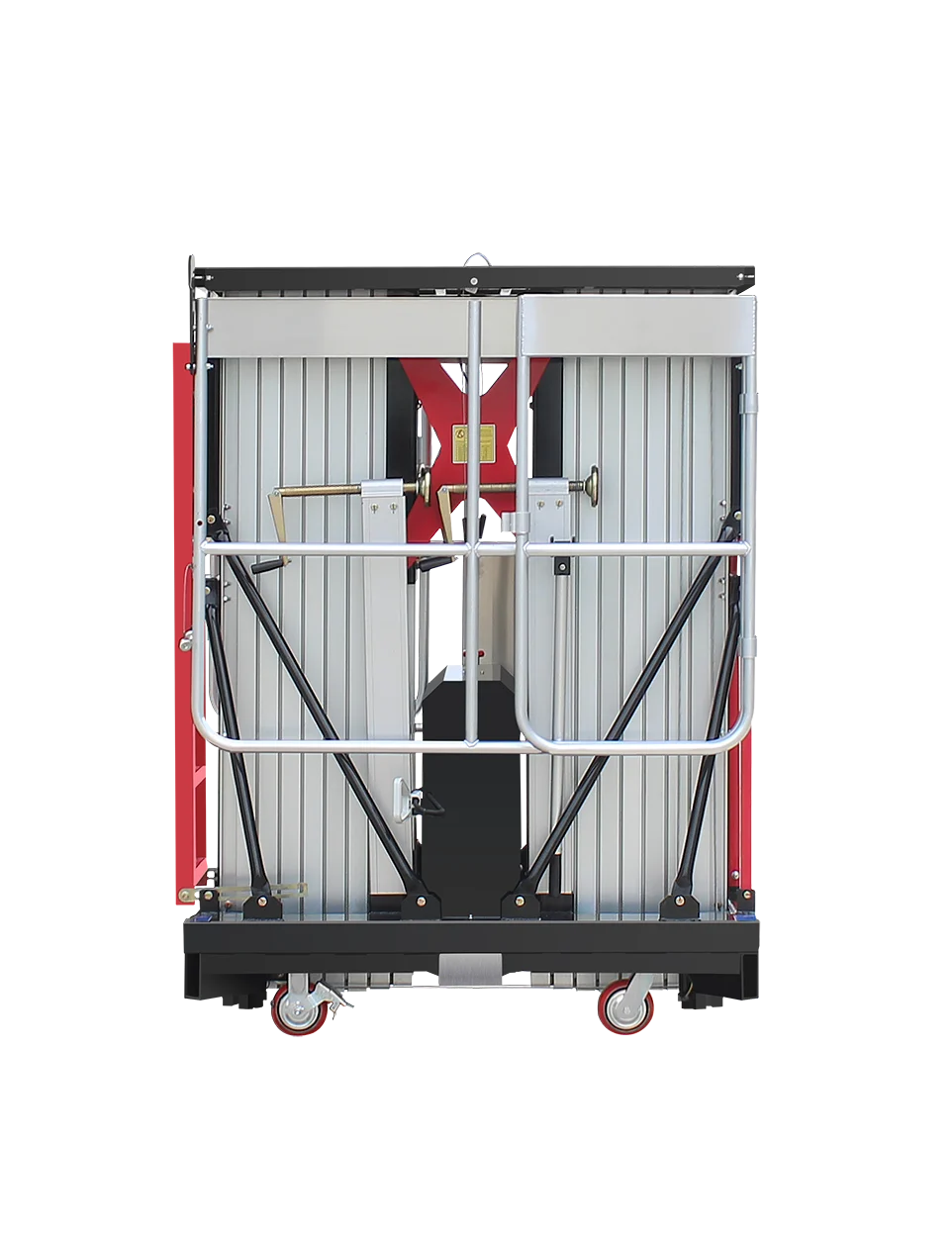

GTWY2-6/2-8/2-10/2-12/2-14/2-16
Single Mast from 4.7m to 12m
Load capacity 100kg

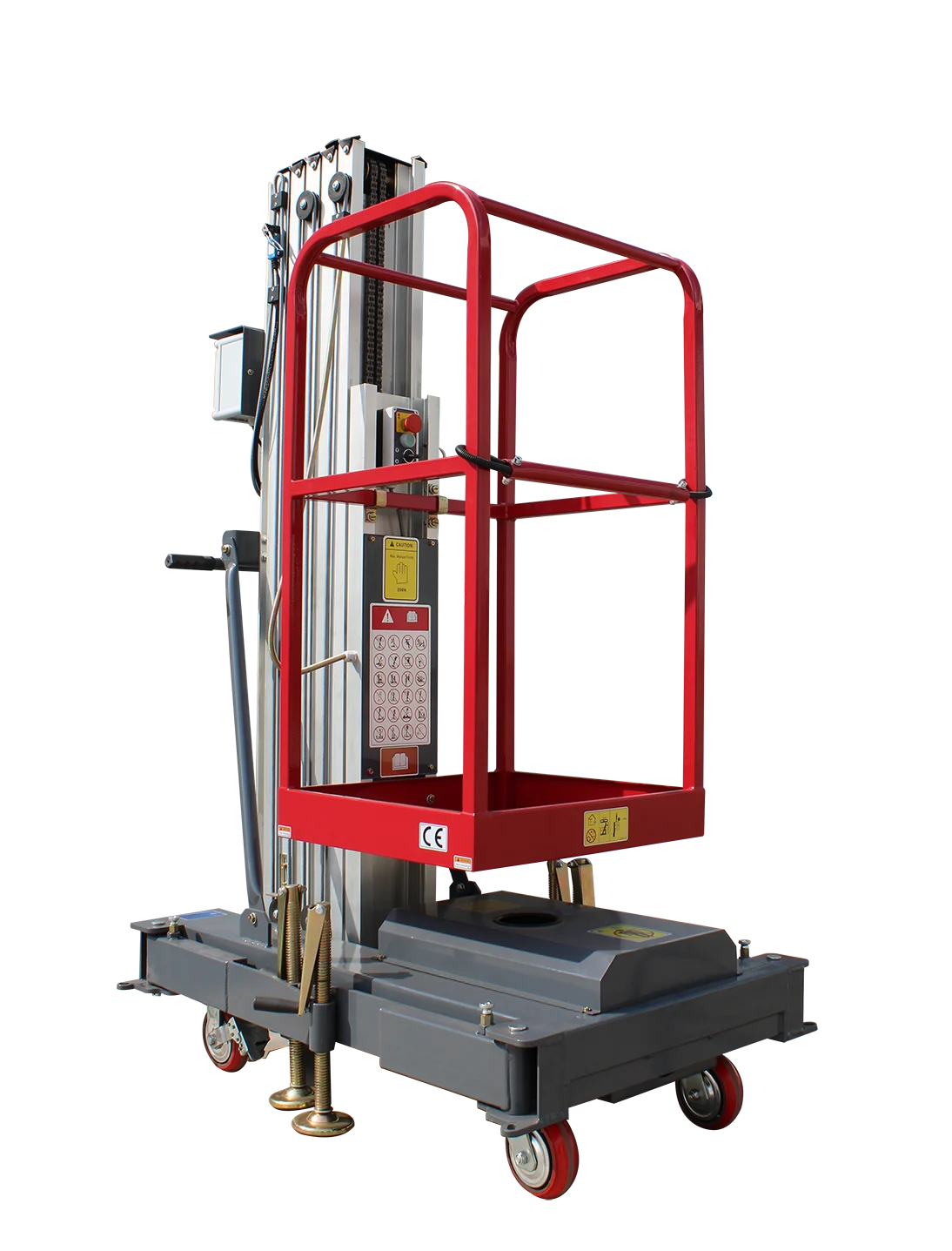

AWP1-6/1-8/1-9/1-10
Single mast lift platform height from 6m to 10m
Swing outrigger

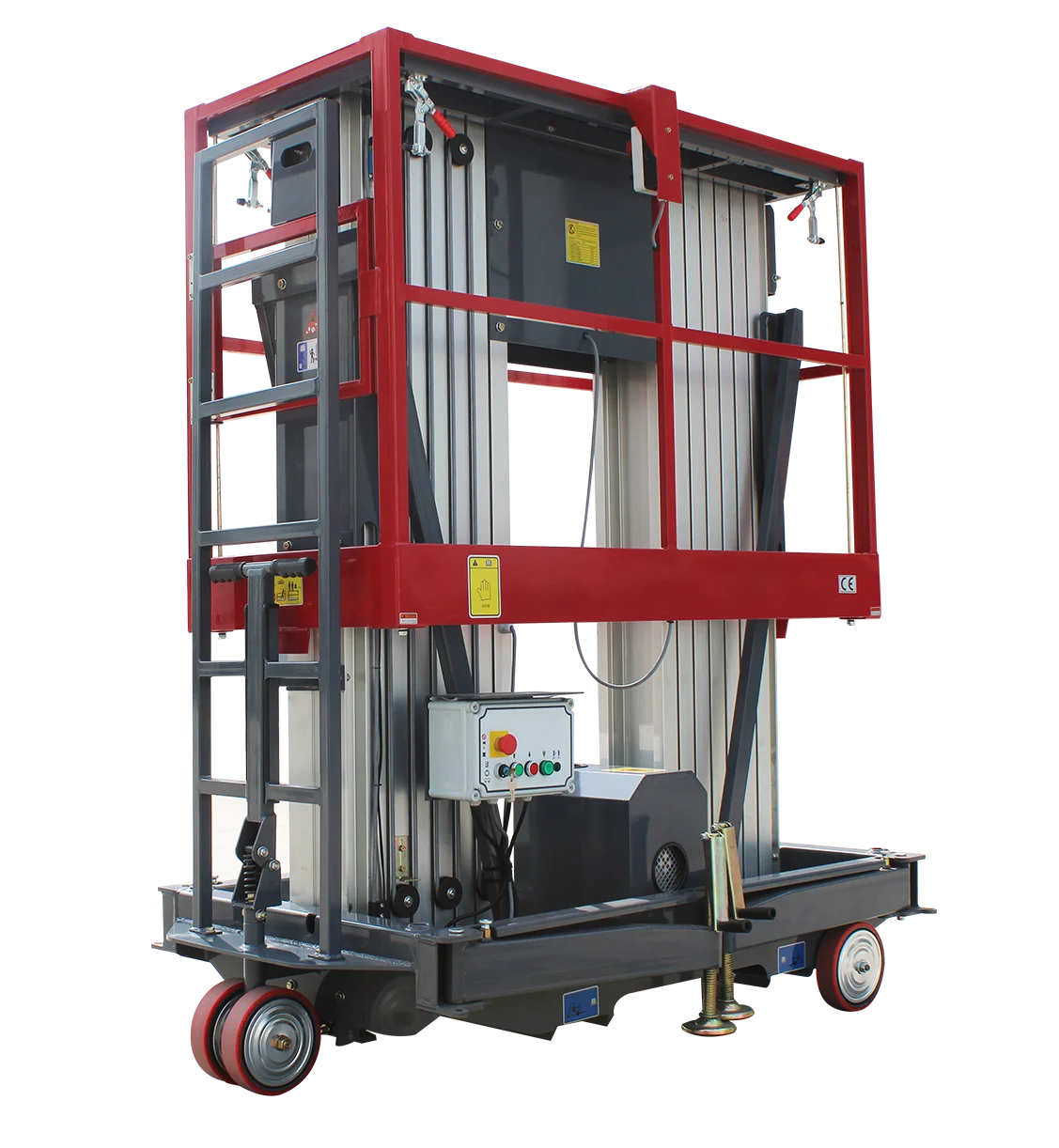

AWP2-6/2-8/2-9/2-10/2-12
Single mast lift platform height from 6m to 10m
Swing outrigger
GTWY Model Mast Vertical Model List
| Model | Max Working Height (m) | Max Platform Height (m) | Capacity (kg) | Persons | Platform Size (m) | Overall Height (m) | Overall Width (m) | Overall Length (m) | Outrigger Coverage (m) | Weight AC (kg) | Weight DC (kg) | AC Power | Lifting Motor (kW) | Battery Option | Charger |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GTWY1-5 | 6.7 | 4.7 | 150 | 1 | 0.67x0.66 | 1.99 | 0.76 | 1.26 | 1.9x1.8 | 330 | 380 | 380V/220V/110V | 1.5 | 12V | 12V/15A |
| GTWY1-6 | 8.1 | 6.1 | 150 | 1 | 0.67x0.66 | 1.99 | 0.76 | 1.26 | 1.9x1.8 | 345 | 395 | 380V/220V/110V | 1.5 | 12V | 12V/15A |
| GTWY1-8 | 9.6 | 7.6 | 150 | 1 | 0.67x0.66 | 1.99 | 0.76 | 1.30 | 1.9x1.8 | 385 | 435 | 380V/220V/110V | 1.5 | 12V | 12V/15A |
| GTWY1-9 | 11 | 9 | 150 | 1 | 0.67x0.66 | 1.99 | 0.76 | 1.35 | 2.1x2.0 | 410 | 460 | 380V/220V/110V | 1.5 | 12V | 12V/15A |
| GTWY1-10 | 12.4 | 10.4 | 136 | 1 | 0.67x0.66 | 1.99 | 0.76 | 1.40 | 2.1x2.0 | 430 | 480 | 380V/220V/110V | 1.5 | 12V | 12V/15A |
| GTWY1-12 | 14 | 12 | 120 | 1 | 0.67x0.66 | 2.78 | 0.76 | 1.42 | 2.4x2.2 | 520 | 572 | 380V/220V/110V | 1.5 | 12V | 12V/15A |
| GTWY2-6 | 8 | 6 | 250 | 2 | 1.45x0.7 | 1.99 | 0.81 | 1.48 | 2.1x1.7 | 610 | 660 | 380V/220V/110V | 1.5 | 2x12V | 12V/15A |
| GTWY2-8 | 10 | 8 | 250 | 2 | 1.45x0.7 | 1.99 | 0.81 | 1.48 | 2.1x1.7 | 645 | 695 | 380V/220V/110V | 1.5 | 2x12V | 12V/15A |
| GTWY2-10 | 12 | 10 | 250 | 2 | 1.45x0.7 | 1.99 | 0.81 | 1.48 | 2.3x2.2 | 715 | 765 | 380V/220V/110V | 1.5 | 2x12V | 12V/15A |
| GTWY2-12 | 14 | 12 | 200 | 2 | 1.45x0.7 | 1.99 | 0.81 | 1.48 | 2.5x2.4 | 750 | 800 | 380V/220V/110V | 1.5 | 2x12V | 12V/15A |
| GTWY2-14 | 16 | 14 | 150 | 2 | 1.8x0.7 | 2.68 | 0.81 | 1.88 | 2.9x2.4 | 892 | 942 | - | 1.5 | 2x12V | 12V/15A |
| GTWY2-16 | 18 | 16 | 150 | 1 | 1.8x0.7 | 2.68 | 0.81 | 1.88 | 2.9x2.4 | 996 | 1046 | - | 1.5 | 2x12V | 12V/15A |
AWP Model Mast Vertical Model List
| Model | Max Working Height (m) | Max Platform Height (m) | Capacity (kg) | Persons | Platform Size (m) | Overall Height (m) | Overall Width (m) | Overall Length (m) | Outrigger Coverage (m) | Weight AC (kg) | Lifting Motor (kW) | Battery Option | Charger |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AWP1-6 | 8 | 6 | 150 | 1 | 0.60x0.55 | 1.99 | 0.81 | 1.34 | 1.7x1.67 | 325 | 0.75 | 12V/80Ah | 12V/15A |
| AWP1-8 | 10 | 8 | 150 | 1 | 0.60x0.55 | 1.99 | 0.85 | 1.34 | 1.7x1.67 | 378 | 0.75 | 12V/80Ah | 12V/15A |
| AWP1-9 | 11 | 9 | 130 | 1 | 0.60x0.55 | 1.99 | 0.85 | 1.45 | 1.93x1.77 | 400 | 0.75 | 12V/80Ah | 12V/15A |
| AWP1-10 | 12 | 10 | 200 | 1 | 0.60x0.55 | 1.99 | 0.85 | 1.45 | 1.93x1.77 | 430 | 1.1 | 12V/80Ah | 12V/15A |
| AWP2-6 | 8 | 6 | 200 | 1 | 1.5x0.67 | 1.99 | 0.85 | 1.70 | 2.4x2.2 | 630 | 1.5 | 2x12V/100Ah | 12V/15A |
| AWP2-8 | 10 | 8 | 200 | 1 | 1.5x0.67 | 1.99 | 0.76 | 1.70 | 2.4x2.2 | 680 | 1.5 | 2x12V/100Ah | 12V/15A |
| AWP2-9 | 11 | 9 | 200 | 1 | 1.5x0.67 | 1.99 | 0.76 | 1.70 | 2.4x2.2 | 730 | 1.5 | 2x12V/100Ah | 12V/15A |
| AWP2-10 | 12 | 10 | 200 | 1 | 1.5x0.67 | 1.99 | 0.76 | 1.70 | 2.4x2.2 | 800 | 1.5 | 2x12V/100Ah | 12V/15A |
| AWP2-12 | 14 | 12 | 200 | 1 | 1.5x0.67 | 1.99 | 0.76 | 1.70 | 2.4x2.2 | 830 | 1.5 | 2x12V/100Ah | 12V/15A |
Custom Vertical Mast Lift That Suits Your Need
You will get accurate lift solution in 24 hours.Please supply main information as follows
