We received an inquiry for a home elevator from Sydney.
The client wanted to install an elevator in his house in Sydney, Australia. He opted for a traction gantry elevator installed in a concrete shaft. Our agent in Sydney visited the client’s site to conduct measurements and analysis. The installation dimensions were 1700*1600mm, for three floors, with floor heights of 3430mm and 2900mm respectively.

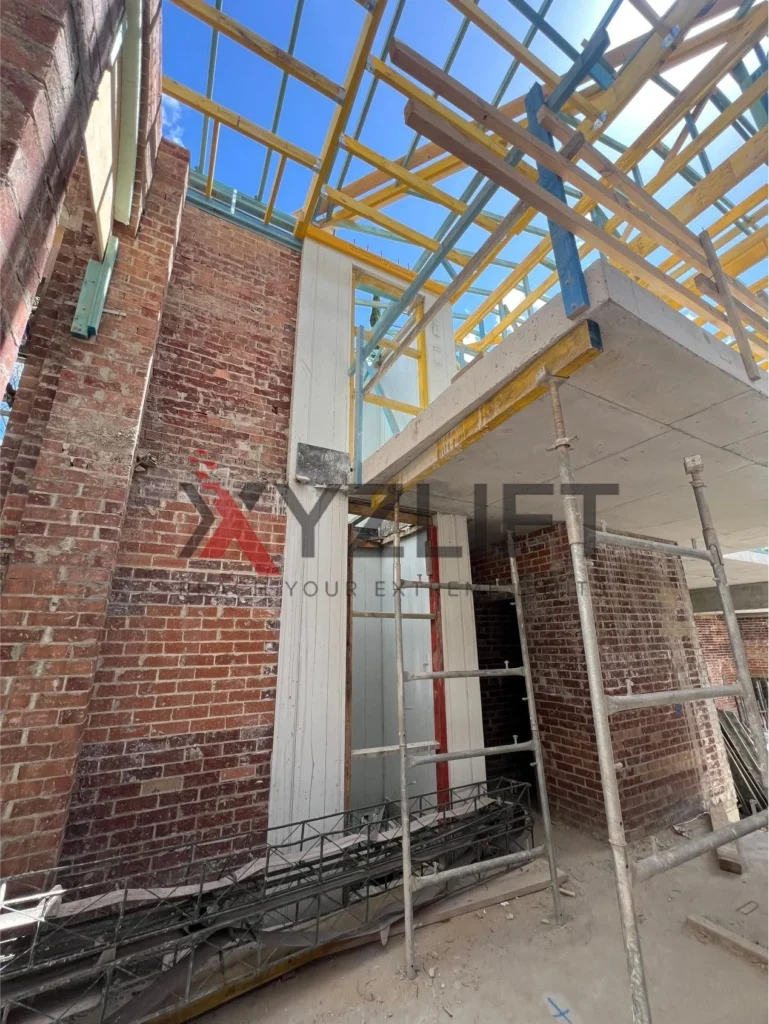

The customer’s on-site installation environment is as follows:
Because Australia has restrictions on door opening width, requiring 800-900mm, a center-opening door would require over 2000mm of shaft space. Therefore, we recommend a side-opening door.
Summary of client requirements:
Shaft dimensions: 1700*1600mm
Load requirement: 400kg
Lifting height: 3430mm
Top floor height: 2900mm
Door opening width: 800mm

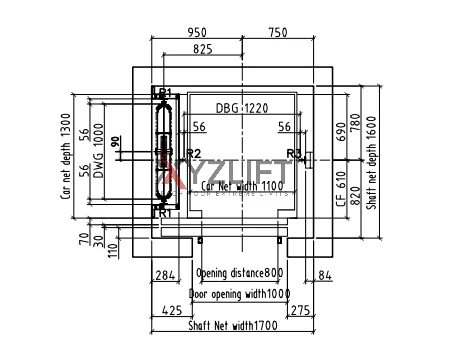

Final solution as follows:

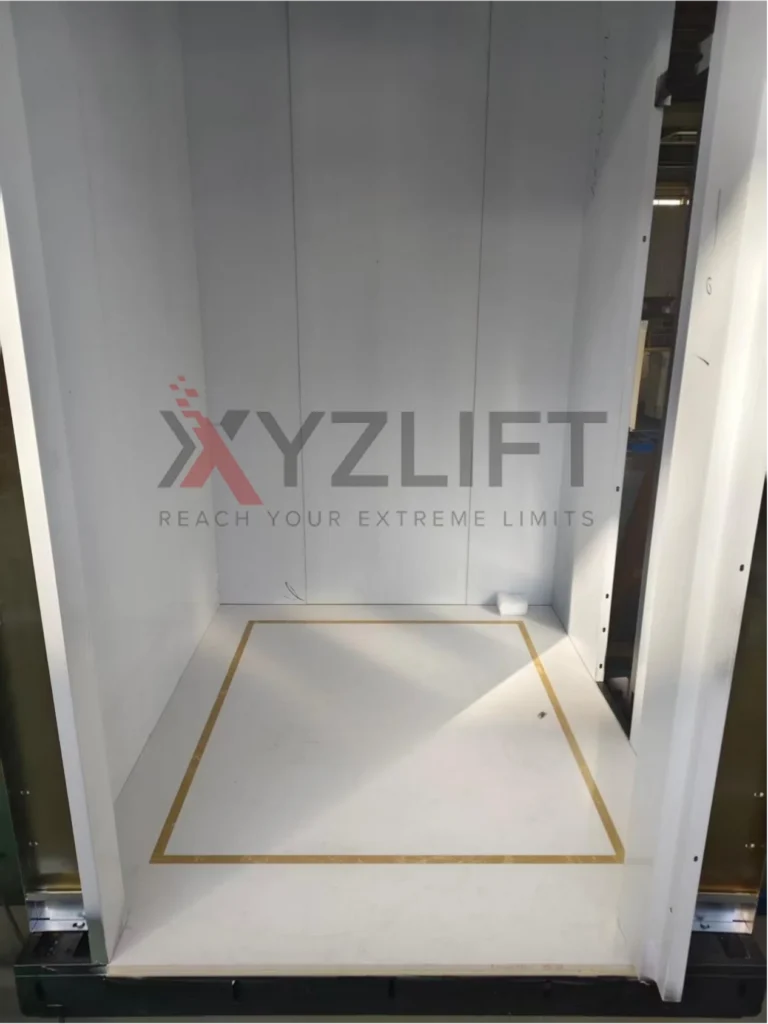

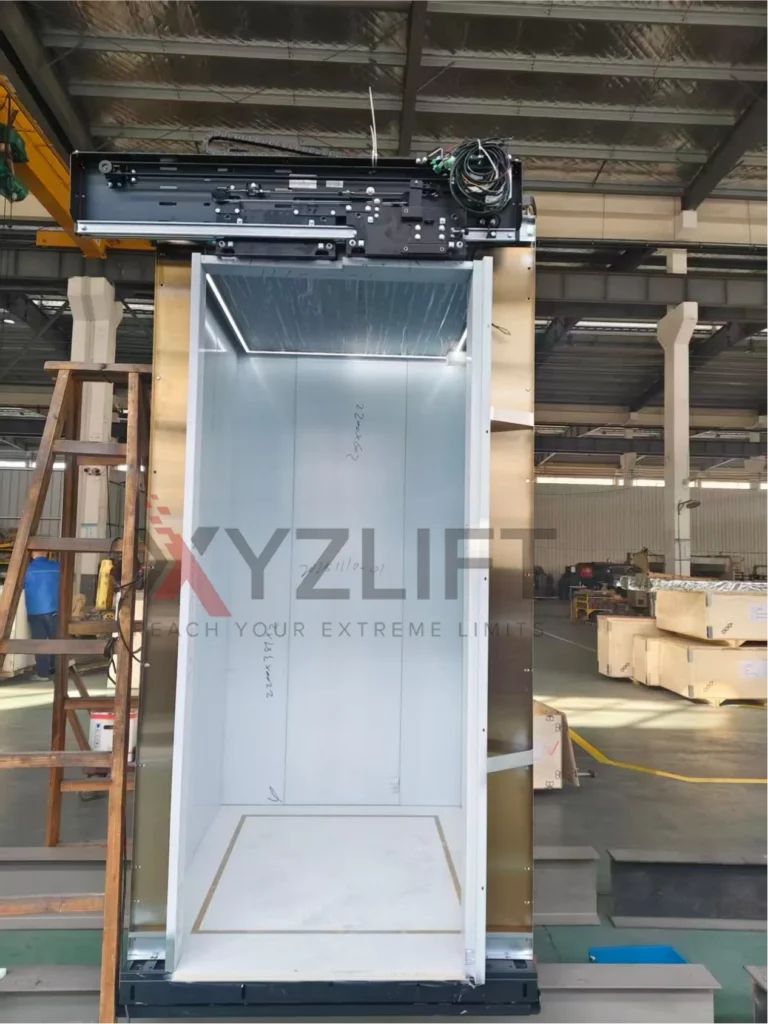

Production completed and ready for display
After the goods arrived at Sydney Harbour, we arranged for our installers to go to the site to carry out the installation work.
Preliminary Installation Preparations:
1. Tool Preparation – Prepare installation tools

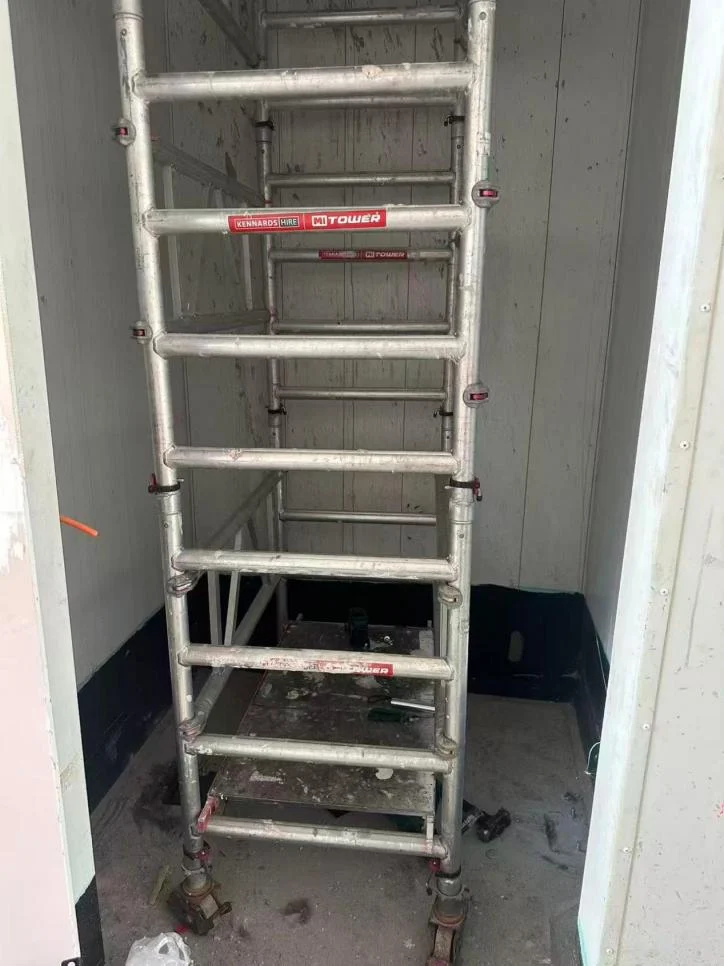

2. Site Preparation – Measure the site’s verticality, prepare hoisting equipment and scaffolding, etc.

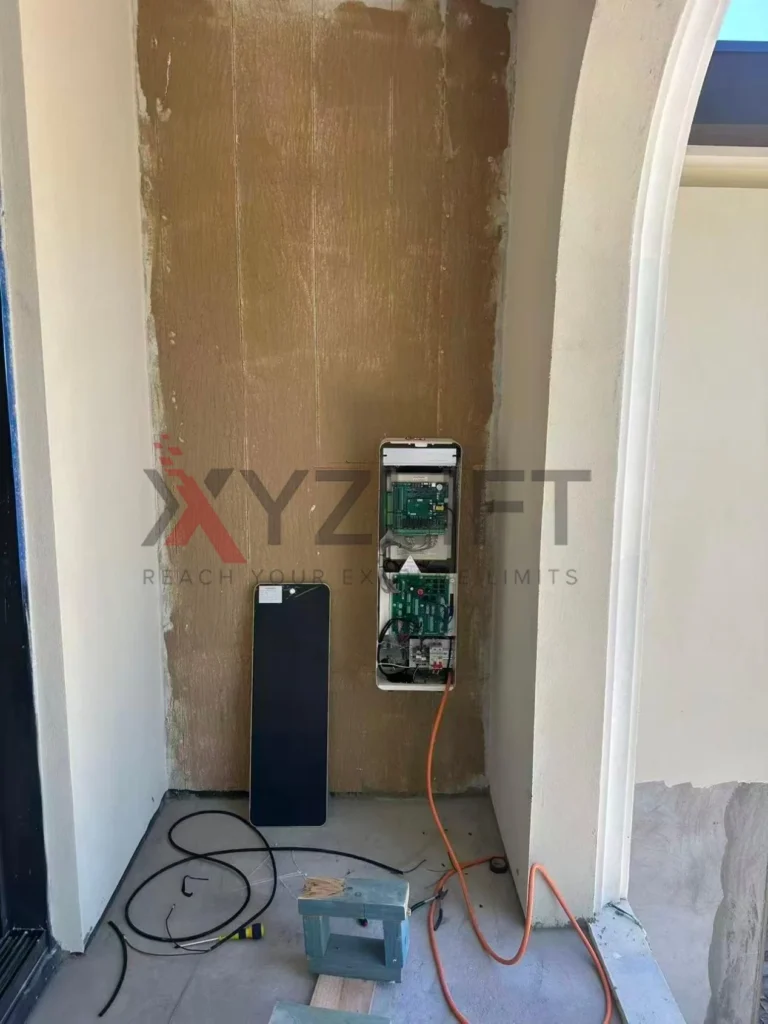

-Power supply preparation-Customer on-site input power supply preparation, trial operation of slow train, express train, etc.

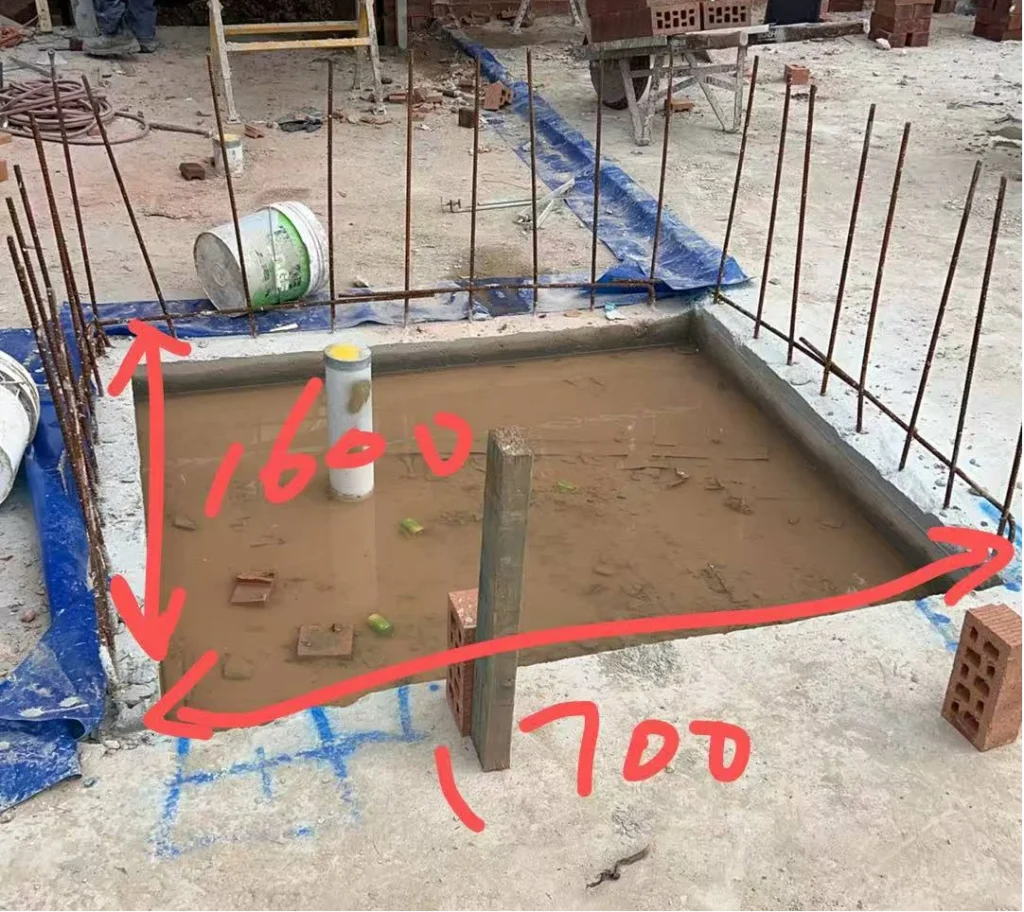

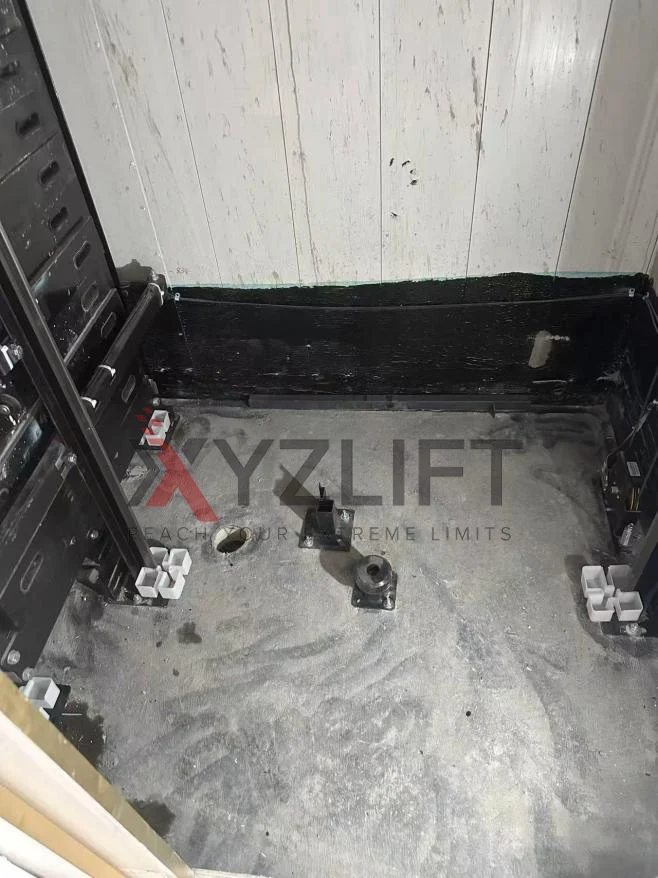

To begin installation, the pit must first be secured.

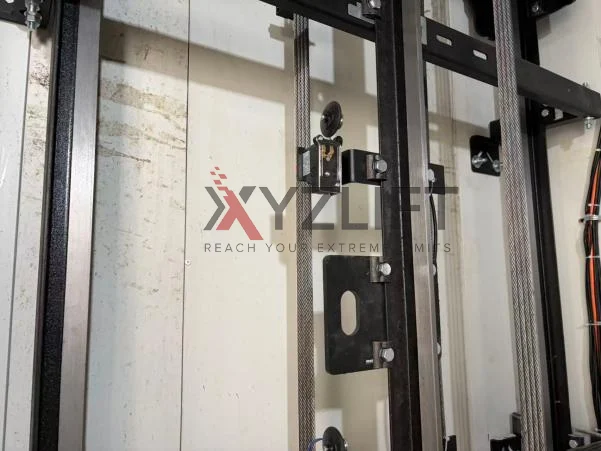

Install guide rails
Wire rope installation

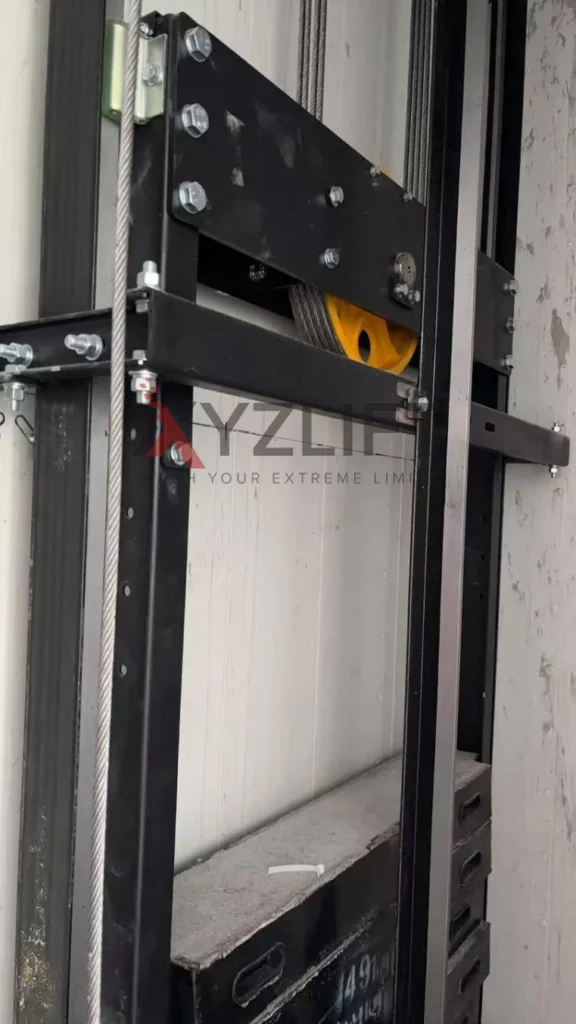

Gantry crane installation
After completion, conduct tests and present the results.
