Project Overview
XYZLIFT supplied two custom‑built hydraulic home elevators for a private residential project in Georgia. The customer provided original building shaft drawings with exact floor‑to‑floor heights and dimensional constraints at the early communication stage. Our engineering team reviewed the on‑site shaft conditions, discussed multiple cabin layout options, confirmed interior decoration selections, finalized all technical parameters, and pushed forward to order confirmation, manufacturing and delivery.
Project 1 | 3‑Stop Residential Hydraulic Elevator
- Rated Load: 300 kg
- Cabin Dimension: 640 mm(W) × 880 mm(D) × 2100 mm(H)
- Travel Height: 7400 mm
- Stops / Floors: 3 stops (L1, L2, L3)
- Power Supply: 220V 50Hz single‑phase
- Shaft Condition: Fully concrete shaft on 1st floor; 2nd & 3rd floors with three‑sided concrete plus one‑side glass shaft wall
Project 2 | 2‑Stop Residential Hydraulic Elevator
- Rated Load: 300 kg
- Cabin Dimension: 670 mm(W) × 880 mm(D) × 2100 mm(H)
- Travel Height: 4200 mm (land at 0 mm & 4200 mm)
- Stops / Floors: 2 stops (L1, L2)
- Power Supply: 220V 50Hz single‑phase
- Shaft Condition: Full concrete shaft
- Door Solution: 90‑degree opening manual swing landing door
- Landing Door Size: 564 mm width × 2055 mm height
Project Communication & Workflow

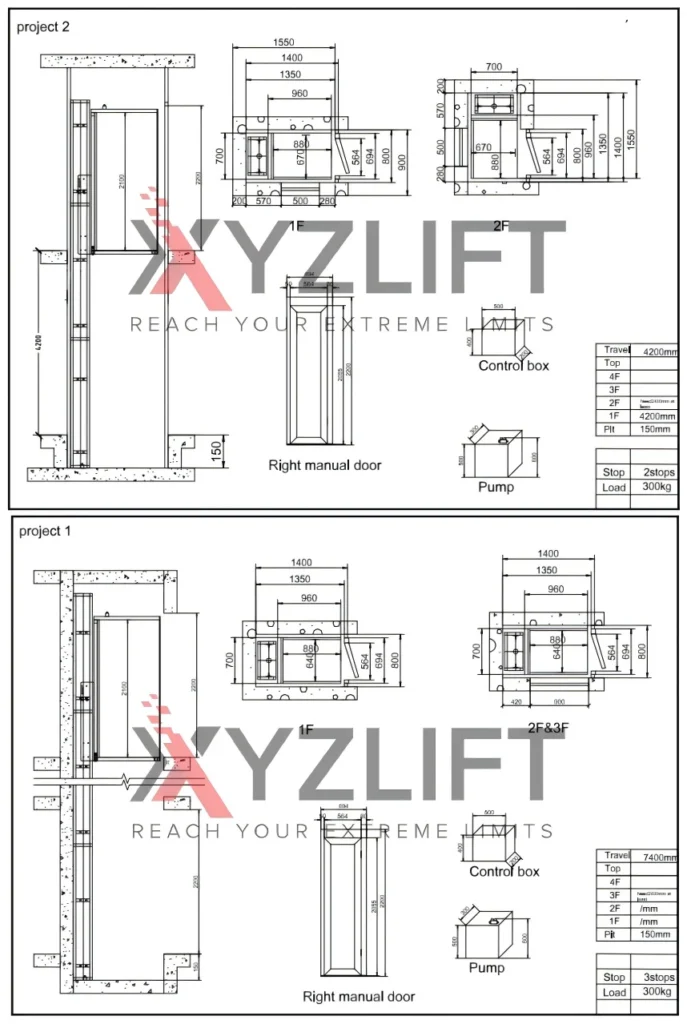

1.Drawing & Technical Alignment

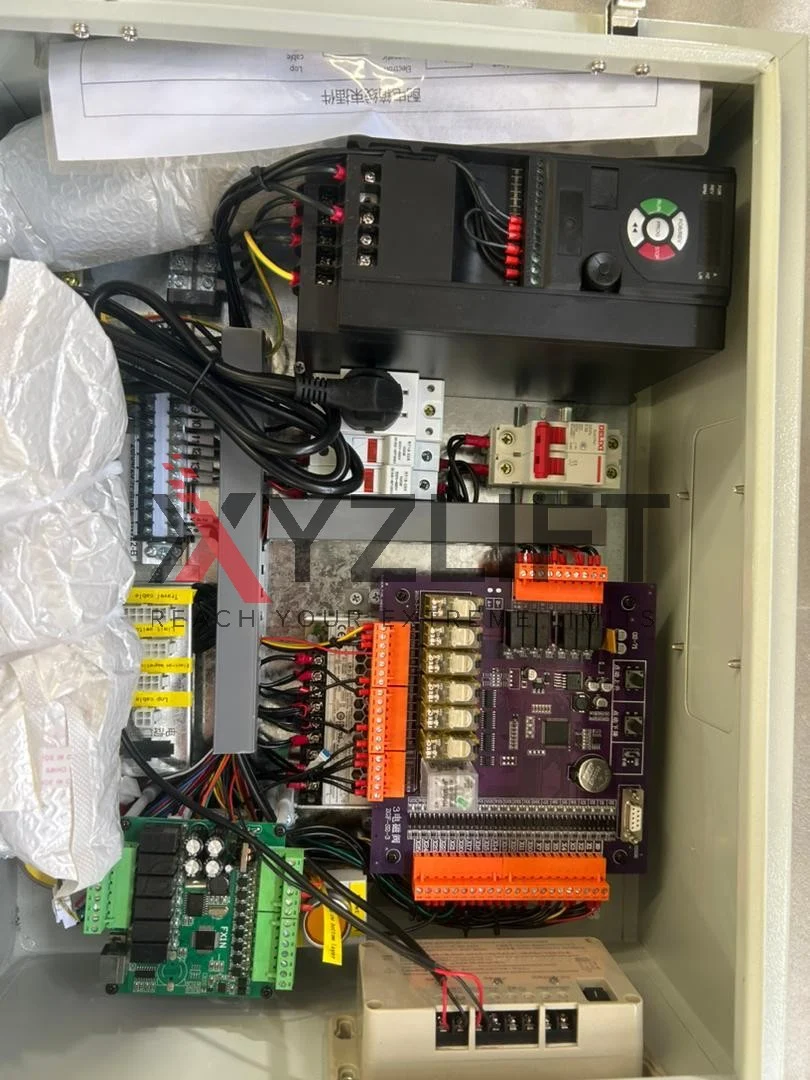

The customer shared architectural shaft drawings with marked shaft sizes, floor heights and site boundaries. Our technical team analysed two alternative cabin proposals against the real shaft space, communicated control box / pump unit layout, COP car‑operating‑panel configuration, ceiling finish and on‑site installation scheme . All technical ambiguities were fully clarified before quotation.
2.Interior Selection & Order Initiation
3.Final Parameter Confirmation

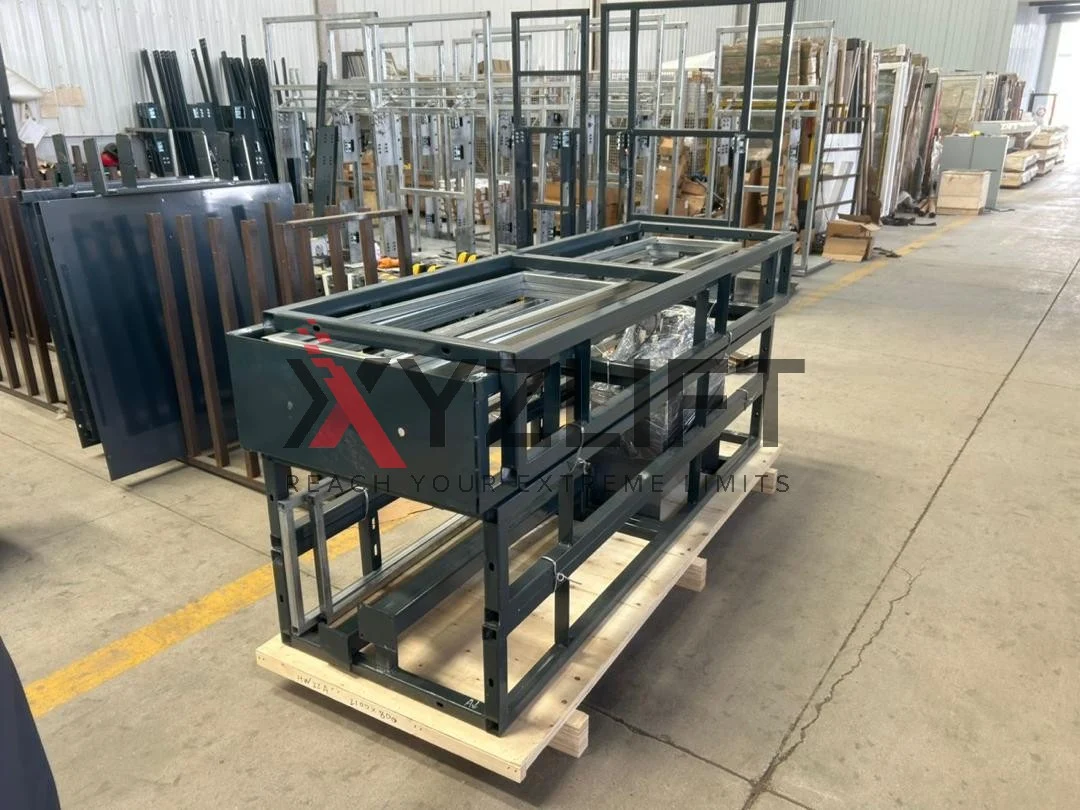

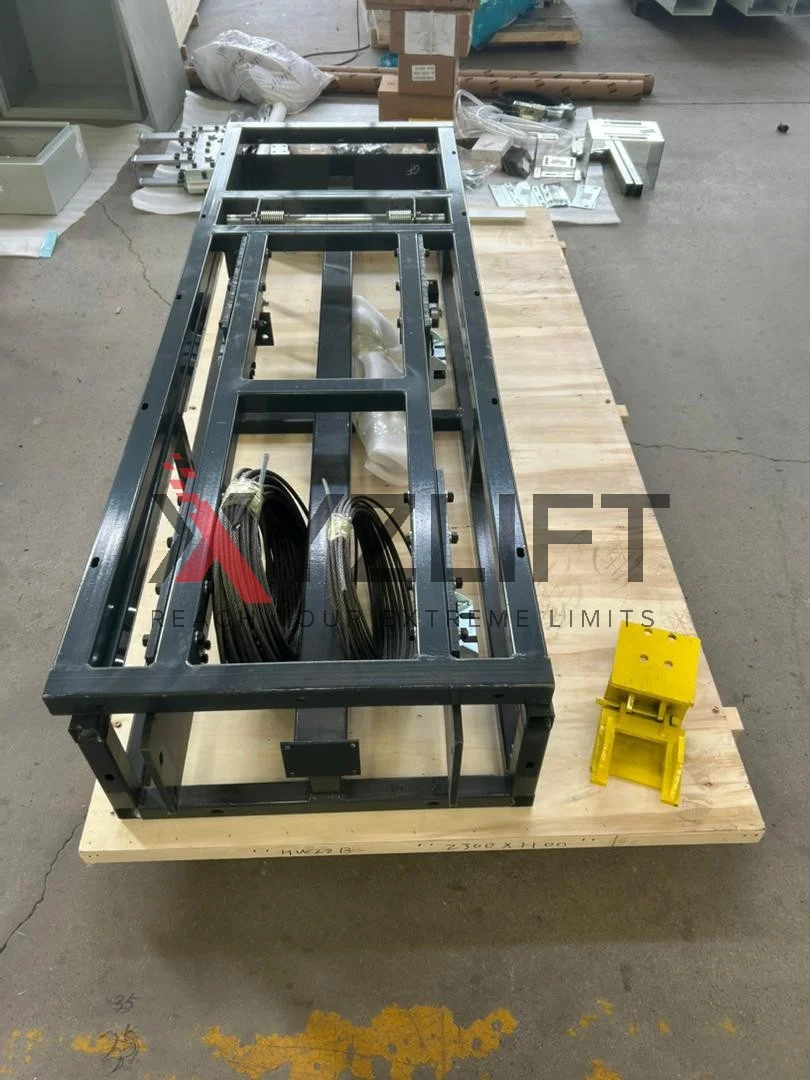

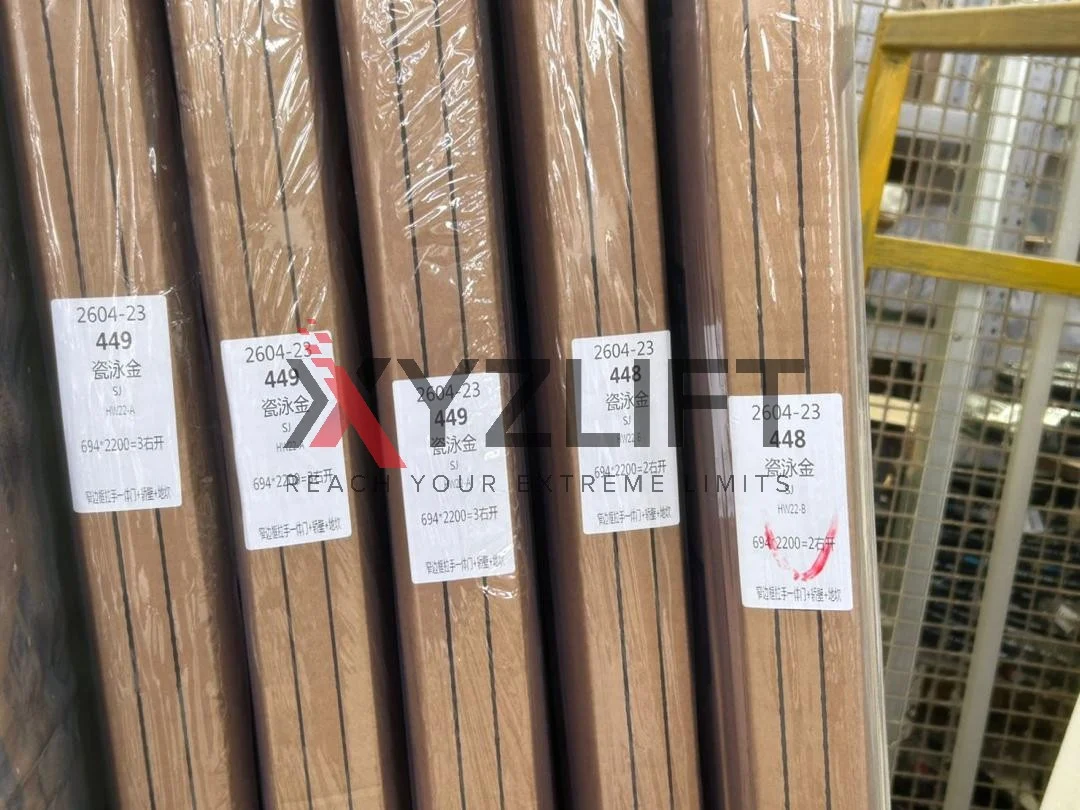

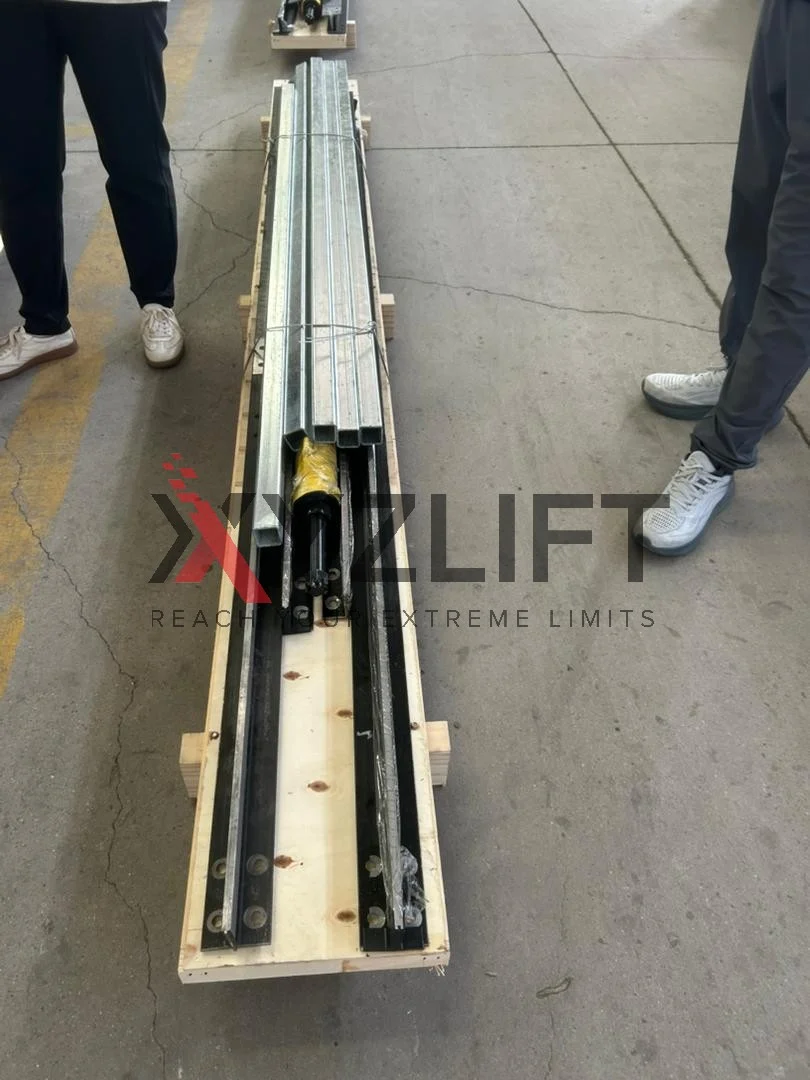

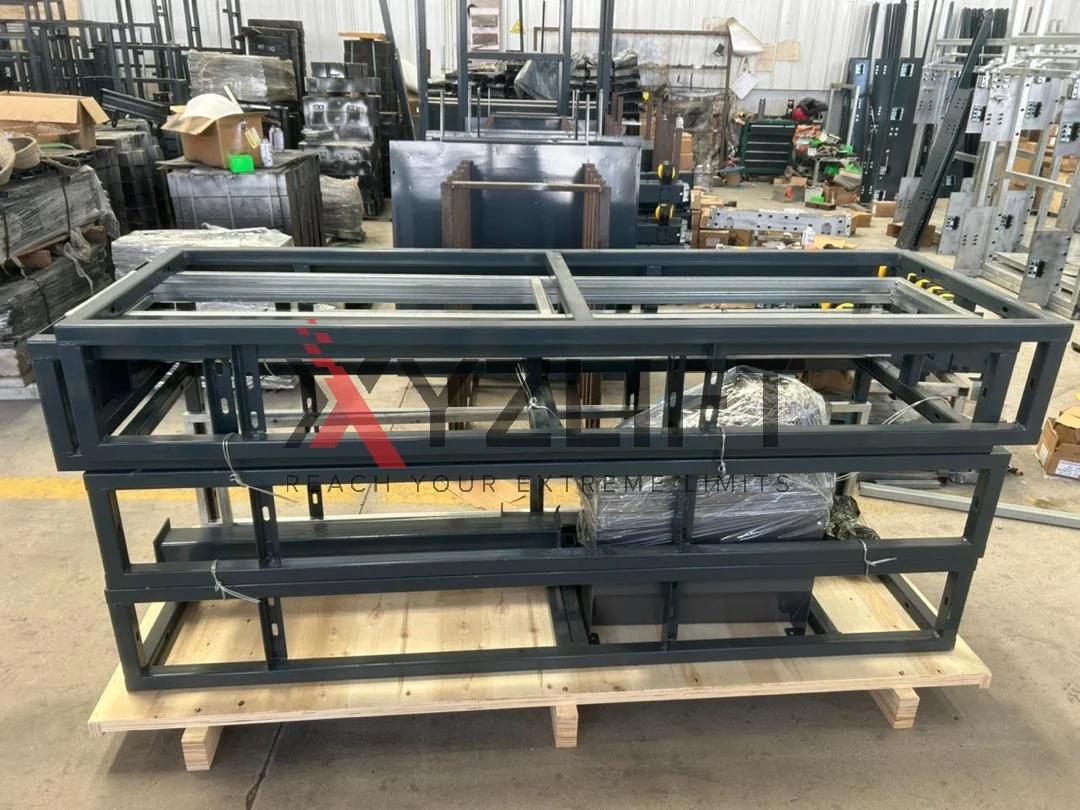

4.Engineering & Delivery
Why XYZLIFT
Every residential elevator project starts from customer’s actual building conditions. We deliver custom hydraulic home elevators tailored to your existing shaft space: from drawing review, cabin aesthetic customisation, technical consulting to export‑ready manufacturing. Whether you have concrete shaft or mixed glass‑concrete shaft structure, XYZLIFT provides reliable home‑lift solutions for private houses worldwide.
