Project Background
On January 19, 2026, we received an inquiry from Google for 3 units of Vertical Dock Levelers. The client’s existing equipment was damaged and needed to be replaced as soon as possible to keep loading and unloading operations running smoothly.
After receiving the inquiry, the XYZLIFT team quickly contacted the client to learn more about the site conditions and project requirements. Based on the information provided, we prepared a complete solution, including technical drawings, product specifications, and a quotation.

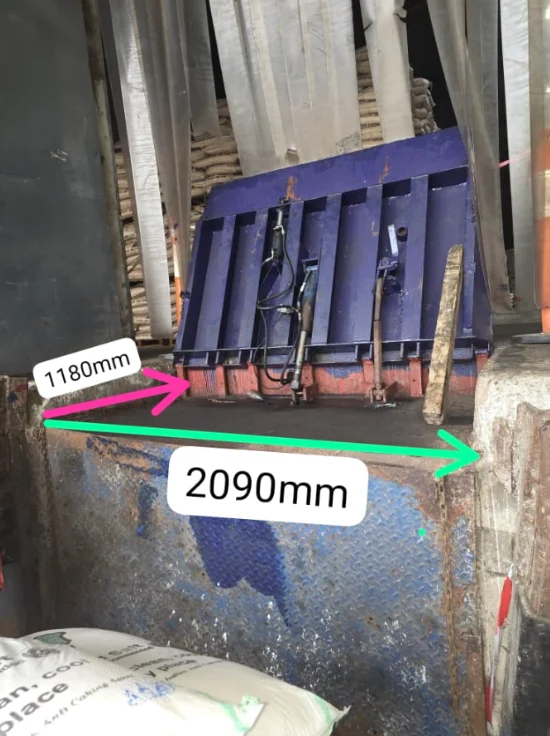

The existing pit size was 1180 × 2120 × 250 mm (L × W × D), and each dock leveler required a load capacity of about 6 tons. According to the site conditions, we provided a customized solution with the following main specifications:
- Platform size: 1000 × 2060 mm
- Travel height: 90°
- Load capacity: 6000 kg
- Stowed height: 250 mm
- Pit size: 1180 mm (L) × 2120 mm (W) × 250 mm (H).
Project Challenge
The client requested that the hydraulic power unit be installed outside the pit. This required a longer hydraulic hose. At the same time, we needed to make sure that the oil return speed would not affect the lifting speed of the dock leveler.
After technical evaluation, we adopted a check valve solution and increased the inner diameter of the hydraulic hose to more than 13 mm. The nut specification was 30×1.5. This solution successfully solved the problem and ensured smooth and stable operation.
Complete Project Support
In addition to supplying the equipment, XYZLIFT also provided full project support to help the client complete installation and future maintenance smoothly.

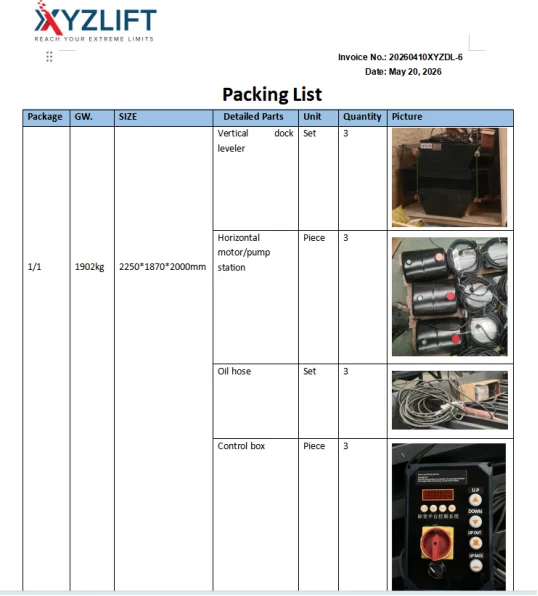

We prepared a detailed packing list showing the quantity, specifications, and photos of every component. This helped the client easily check all items after receiving the shipment.

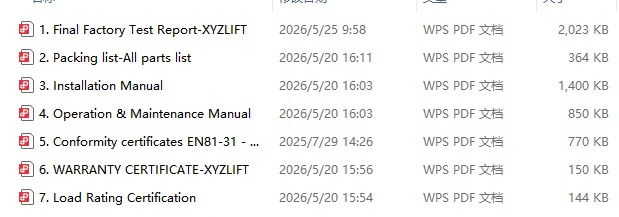

We also provided complete technical documents, including the installation manual, maintenance manual, and other related documents. These materials helped the client understand the product and carry out installation more efficiently.
Throughout the project, our team maintained close communication with the client. We responded quickly to technical questions and provided timely support whenever needed. From the quotation stage to production and shipment, we actively followed up every step of the project to ensure everything moved forward smoothly.
Project Result

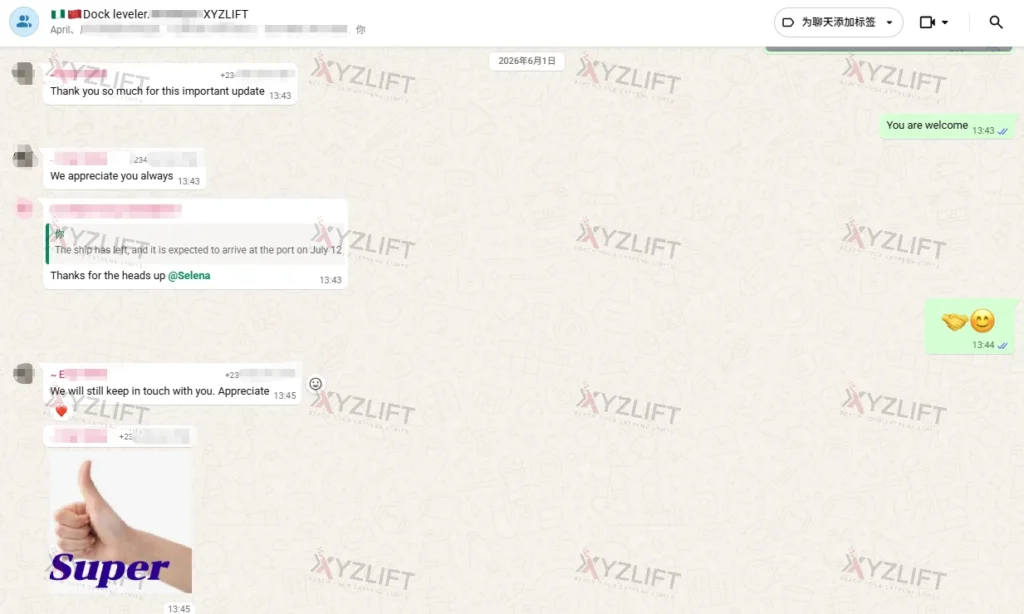

With professional technical support, fast response, and reliable service, we gained the client’s trust and satisfaction. The client was very pleased with our solution, documentation, and project support.
This project not only helped the client successfully replace the damaged equipment but also demonstrated XYZLIFT’s ability to provide complete solutions and dependable service. For the client, we were not only an equipment supplier but also a long-term business partner.
