In June of this year, a customer from Germany sent an inquiry about towable boom lift through Google, aiming to improve the efficiency of aerial work and to expand into the German aerial lift market. The customer’s target height was 20 meters, but due to German law, the towing weight cannot exceed 3,500 kg. Therefore, we recommended that the customer choose the 18-meter model.
The client flew in from Germany to the factory, and we confirmed the details of this project, as follows. Based on the client’s requirements, we made improvements and upgrades to the product:

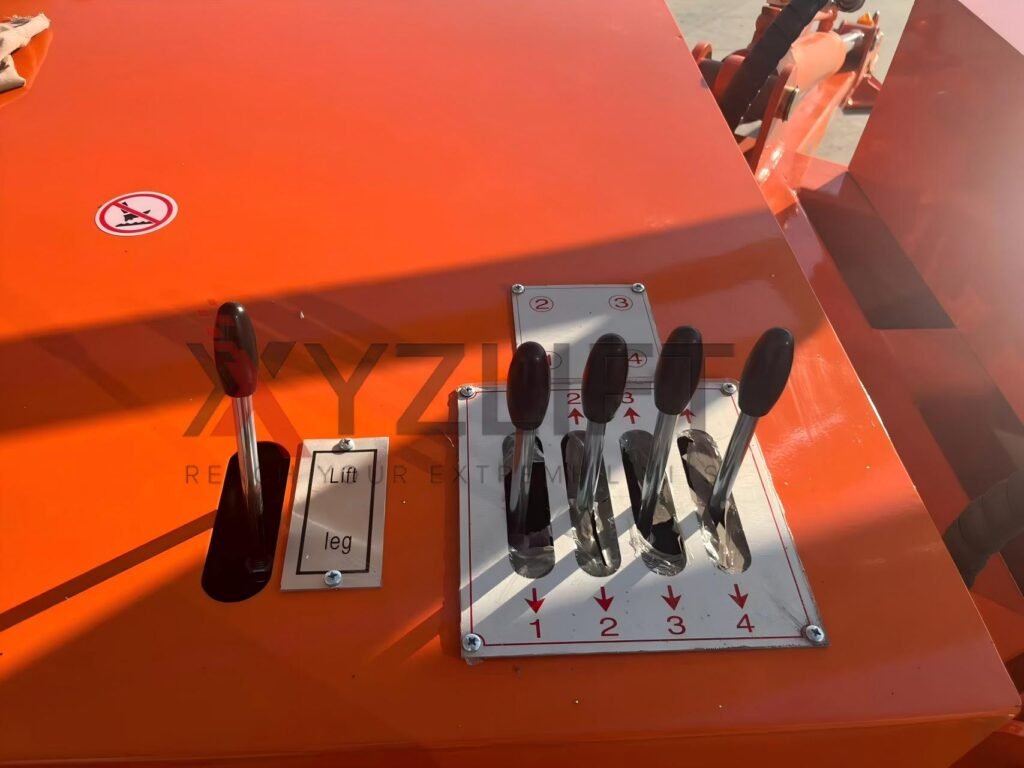

1. Add an anti-accidental touch handle as the main control handle. The handle is in standby mode when it is in the middle position. Pushing it upwards will raise and lower the equipment, and pulling it downwards will operate the outriggers.

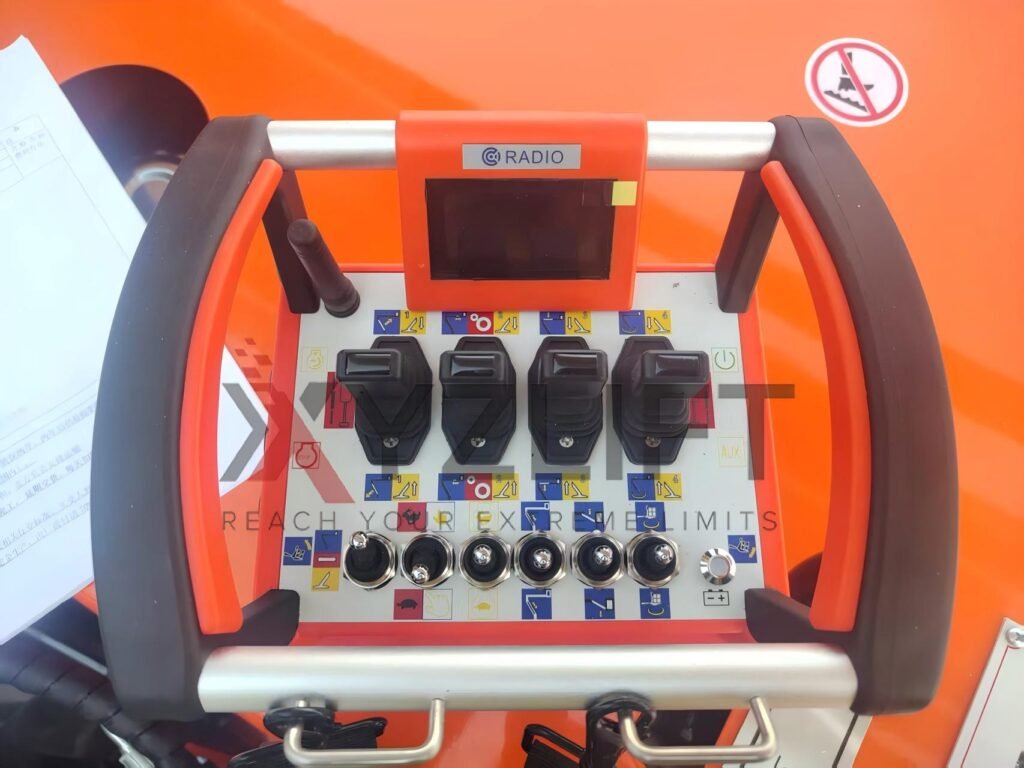

2. Upgraded upper control remote, with added anti-collision support structure. The anti-collision protection frame prevents injury to hands from impacts or obstructions during operation.

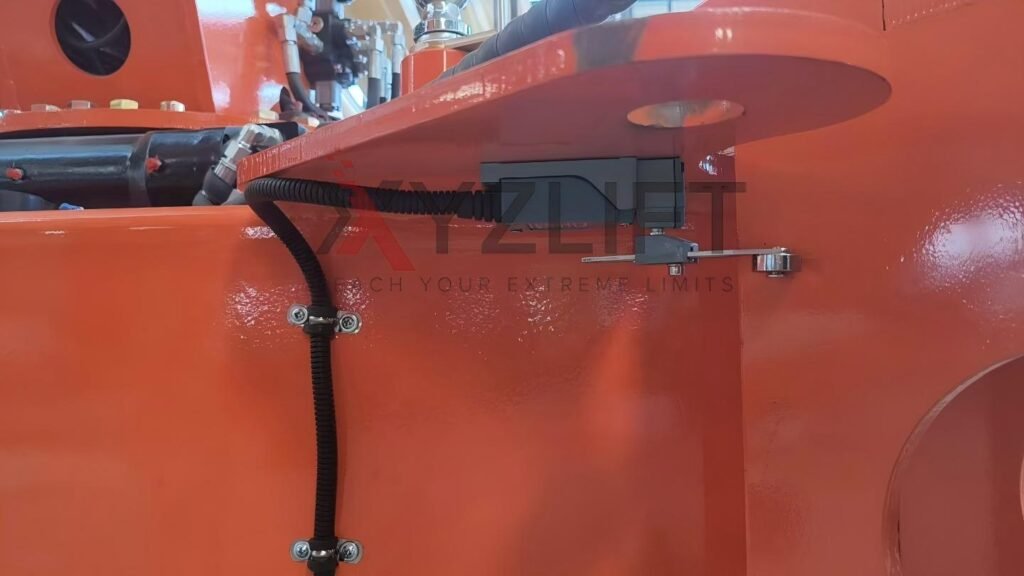

3. Outrigger limit switches: Once the outriggers reach the designated extended position, the limit switches are triggered, allowing the equipment to begin lifting operations. This function prevents the risk of tipping over when the outriggers are not in the correct position.
4. German language system

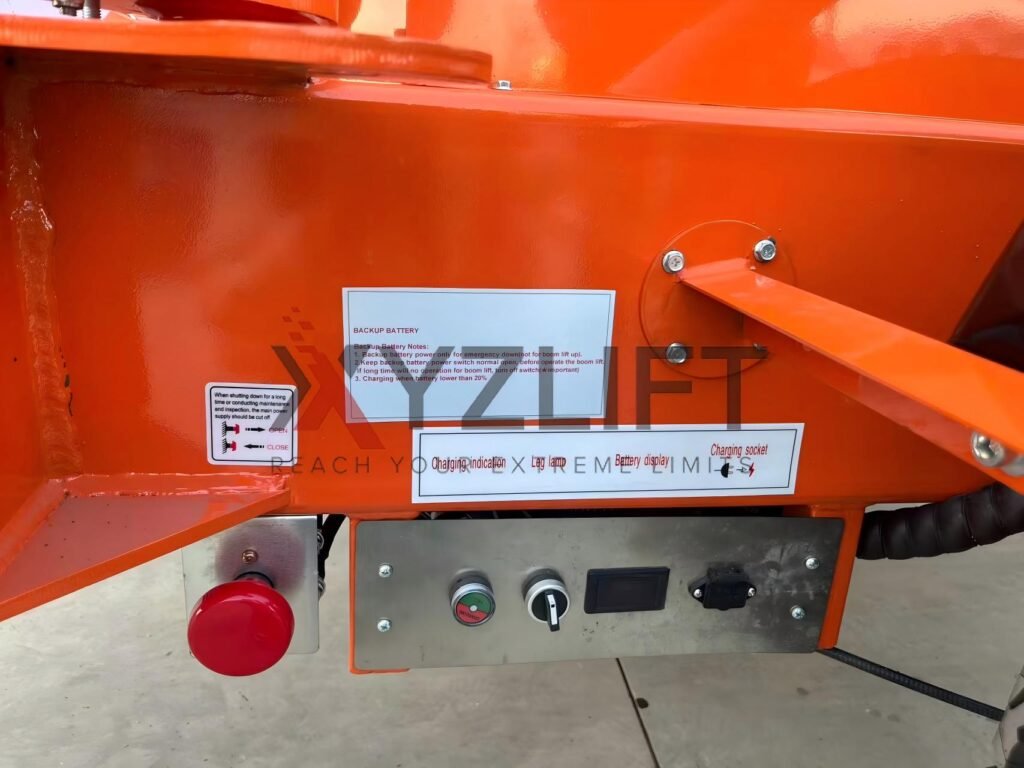

5. Emergency descent
Add emergency batteries to prevent emergency situations
Aiming at the limitation of traditional trailers that “manual emergency lowering requires the cooperation of multiple people”, we added two backup batteries, which can realize single-person operation and can be easily lowered on the platform or on the ground.
1 Display battery power
2 Waterproof stickers with precautions
3 Set the program only for emergency lowering to prevent the customer from mistakenly using the emergency battery during use towable boom lift, resulting in power exhaustion and inability to lower in an emergency

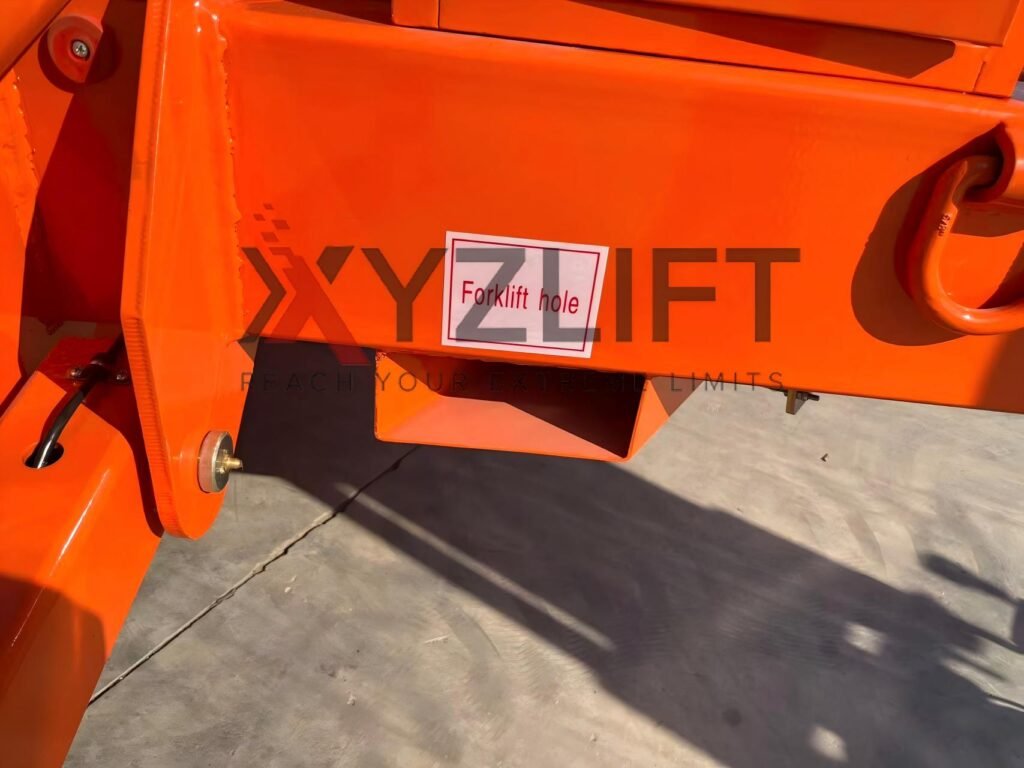

6. Forklift access, loading and unloading

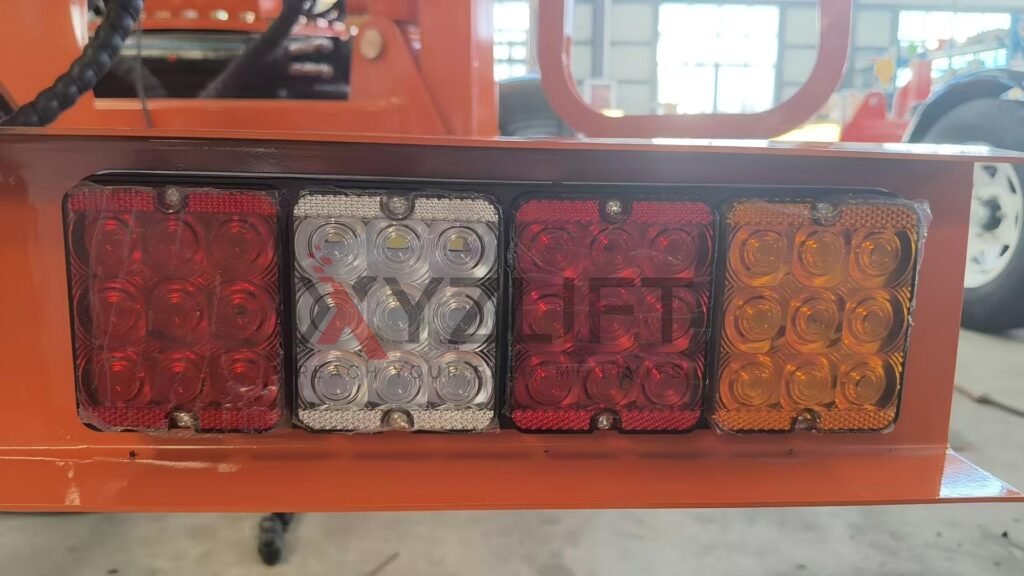

7. Brake lights, one light with four colors
Driving, braking, steering, reversing

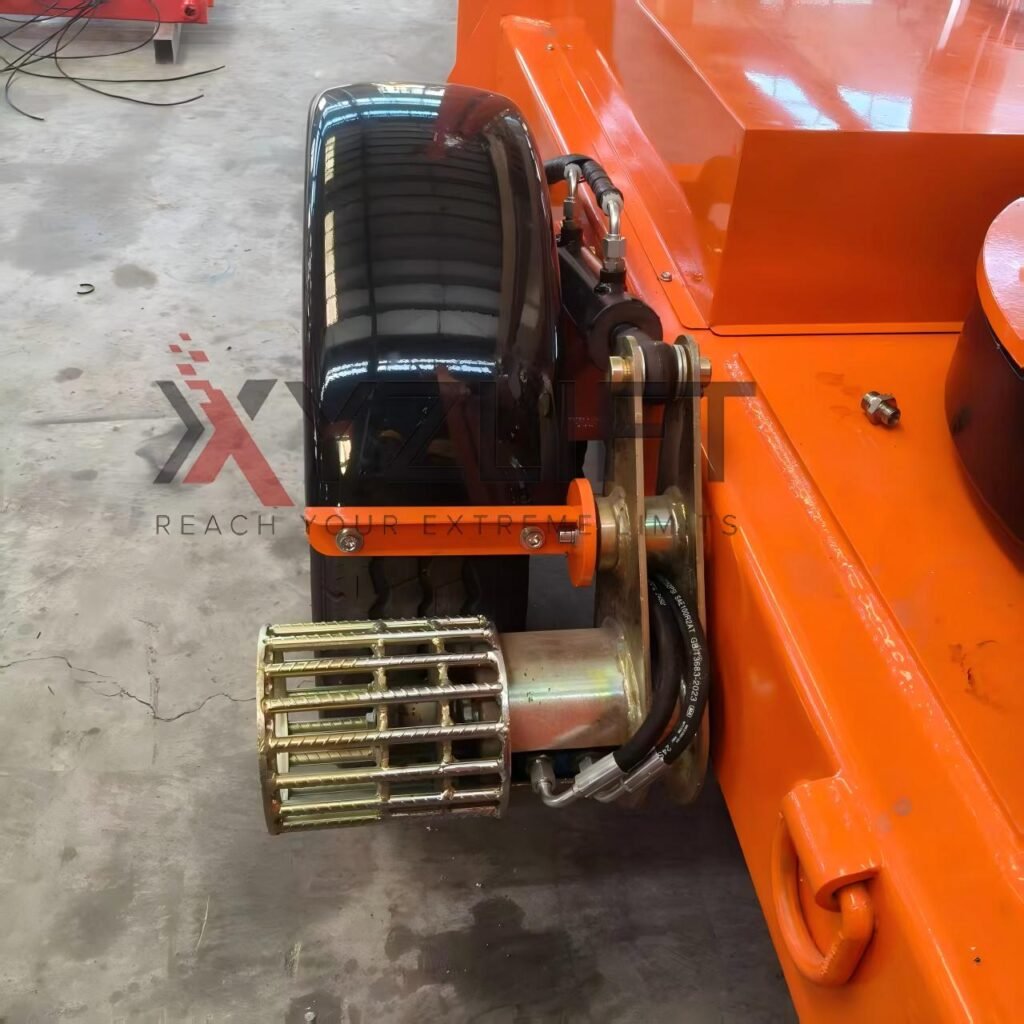

8. Assisted walking

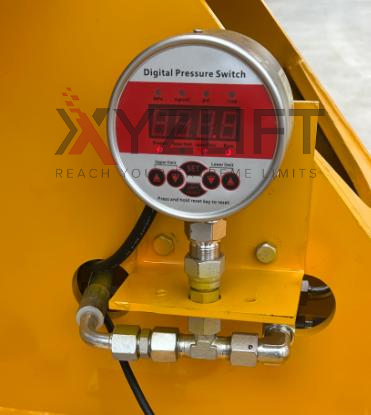

9. Overload alarm

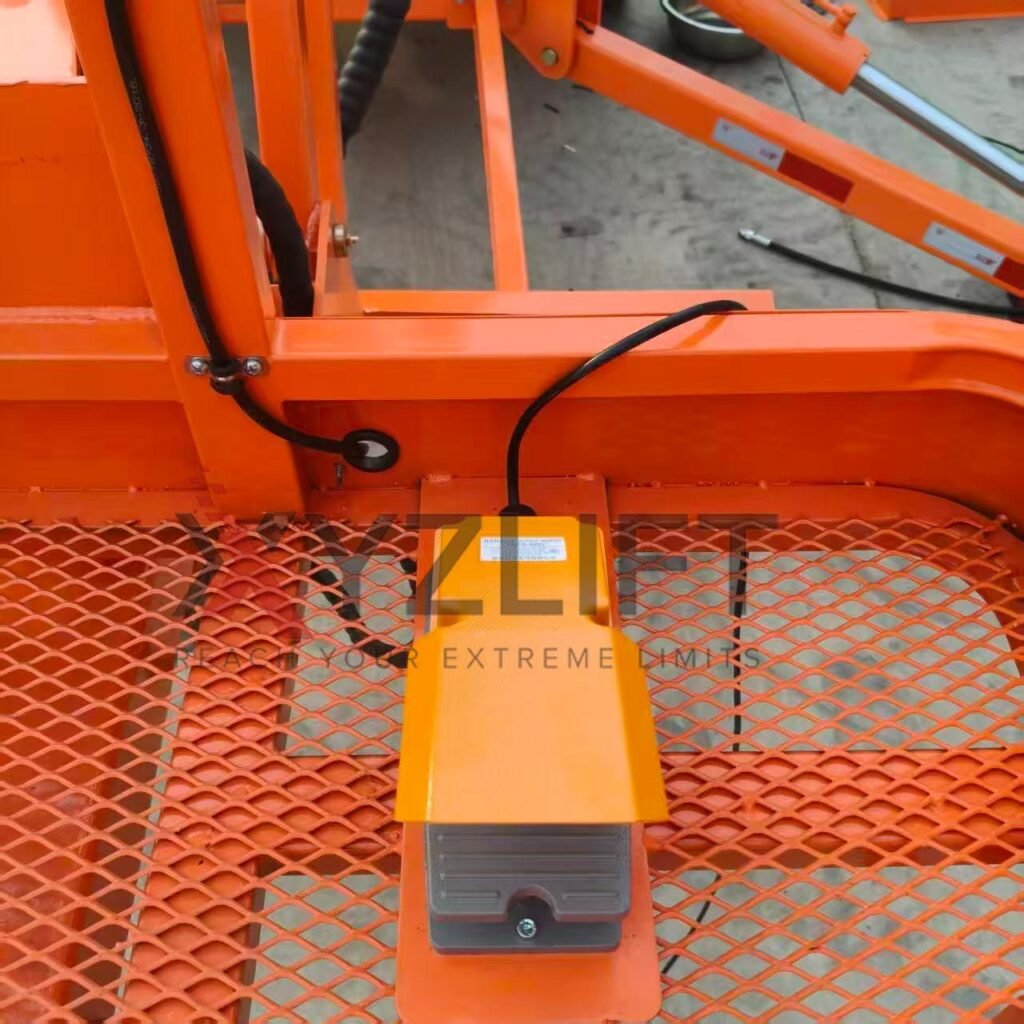

10. Anti-accidental touch button and foot pedal
11. Snow tires

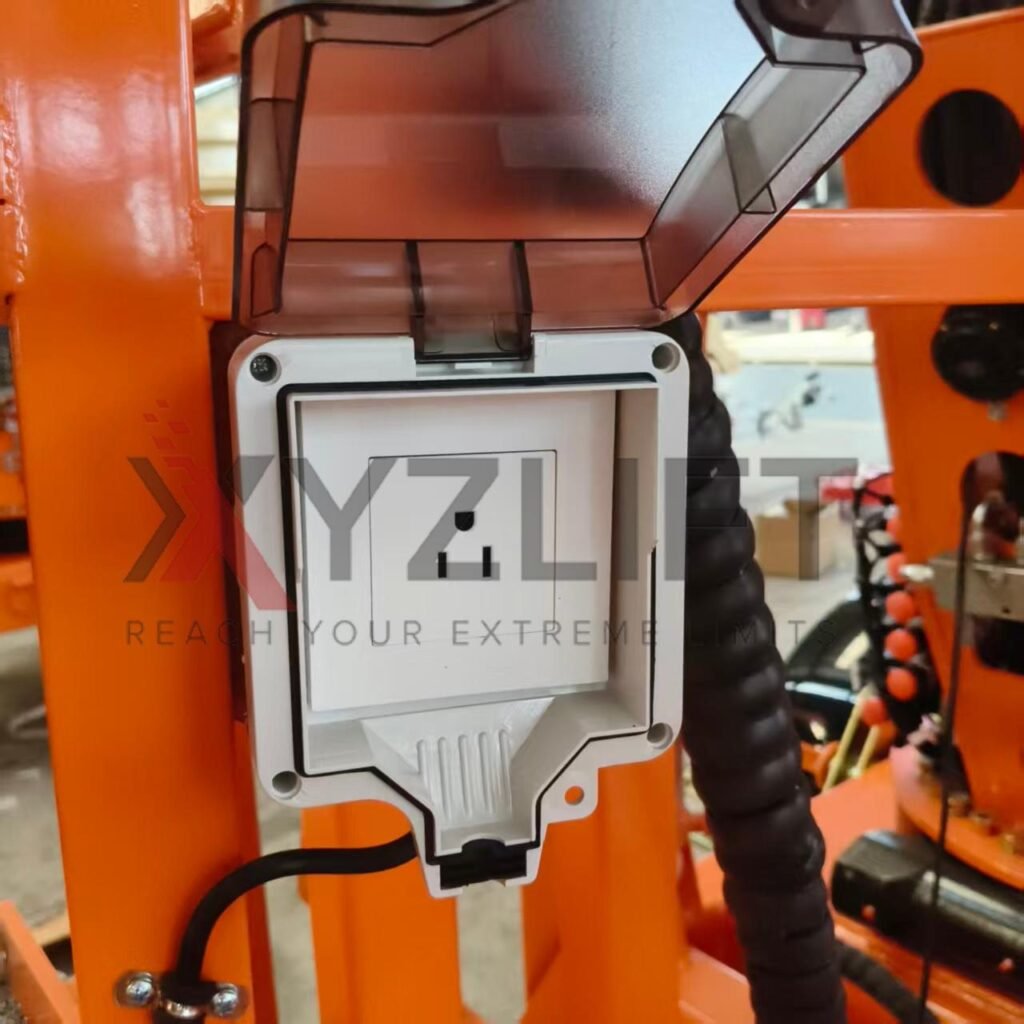

12. Based on the standard electrical sockets in the customer’s location, we customized the power plug and charger to meet local standards.
If you’d like to customize your own trailer boom lift, please contact us now!
